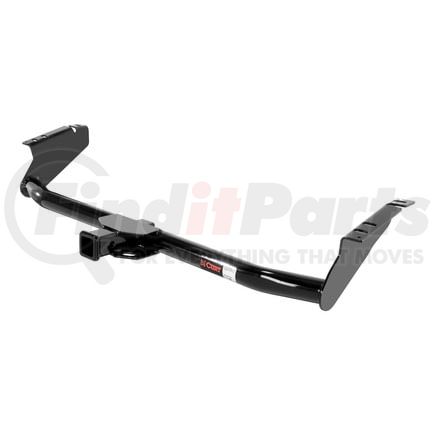

Name: CURT Manufacturing 13105 Class 3 Trailer Hitch; 2in. Receiver; Select Toyota Sienna (Exposed Main Body)
SKU: 13105
Price: 305.99 USD
Availability: InStock

CURT MANUFACTURING part description

Product Description

Class 3 Trailer Hitch; 2in. Receiver; Select Toyota Sienna (Exposed Main Body)

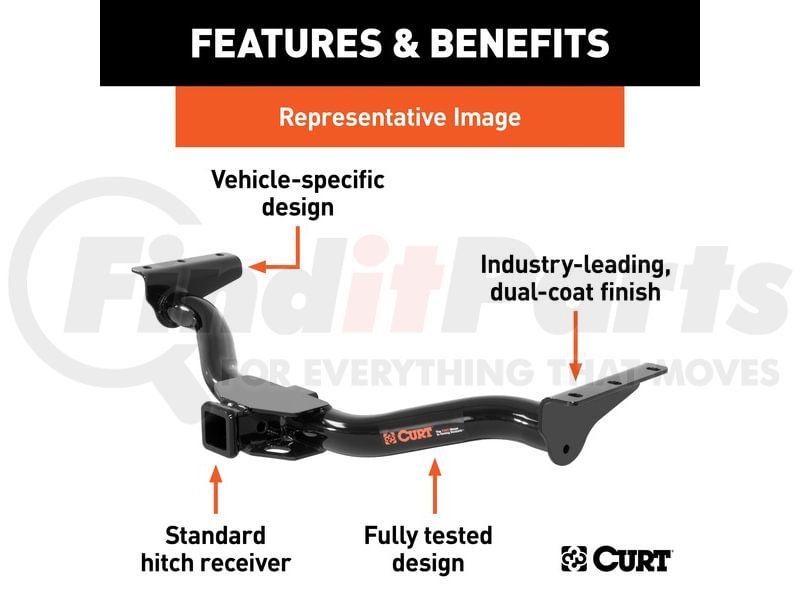

Features & Benefits

Rated to 3,500 lbs. gross trailer weight and 350 lbs. tongue weight
Compatible with weight distribution hitch (5,000 lbs. WD / 500 lbs. WDTW)
Engineered with a vehicle-specific design for a custom fit
Tested for safety in accordance with SAE J684
Co-cured in a rust-resistant liquid A-coat, inside and out
Equipped with an open-back receiver for easy cleaning
Limited lifetime warranty (one-year finish, one-year parts)
Made in USA (may include imported hardware)
Made w/A Vehicle-Specific Design For A Custom Fit
Tested For Safety In Accordance w/SAE J684
Precisely Welded For Superior Strength And Fit
Constructed w/A Sleek Round-Tube Main Body
Protected By A Durable High-Gloss Black Powder Coat Finish
Co-Cured In A Rust-Resistant Liquid Bonderite Coating
Strengthened w/A Cast Welded Seamless Collar
Equipped w/An Open-Back Receiver For Easy Cleaning
Made in USA [may include imported hardware]

Rated to 3,500 lbs. gross trailer weight and 350 lbs. tongue weight

Product Attributes

Body Shape	Round
Drilling Required	No
Finish	Gloss Black Powder Coat
Gross Trailer Weight	3500 lbs.
Install Time	25 Minutes
Position	Rear
Receiver Tube Size	2 IN
Visibility	Exposed
WARNING CA Proposition 65	No
WC Tongue Weight	350
WD Tongue Weight	500
Weight Carrying Capacity	3500
Weight Distribution	5000
Box Height In Inches - Xa	24
Box Length In Inches - Xa	57
Box Width In Inches - Xa	11
Class Id	3
Container Cases Qty - XA	0
Container Pallet Qty - XA	0
Container Unit Qty - XA	0
Container Volume Cubic Feet - XA	0.00000
Container Volume Cubic Meter - XA	0.00000
Container Weight KG - XA	0
Container Weight Lbs - XA	0
Finish - Xa	GLOSS BLACK POWDER COAT
Item Class - Xa	MFH
Item Height - Xa	9.380
Item Length - Xa	56.210
Item Width - Xa	20.130
Main Body Shape	Round
Master Case Height Inches - XA	0.000
Master Case Inner Pack Qty - XA	0
Master Case ITF14	0
Master Case ITF14 - XA	0
Master Case Length Inches - XA	0.000
Master Case Qty - XA	0
Master Case Volume Cubic Feet - XA	0.00000
Master Case Weight Lbs - XA	0.000
Master Case Width Inches - XA	0.000
Material - Xa	Carbon Steel
Mount Type Description - Xa	Blank
Pallet Case Per - XA	0
Pallet Case Per Layer - XA	0
Pallet Cases Per - XA	0
Pallet Cases Per Layer - XA	0
Pallet Layer of Cases - XA	0
Pallet Qty - XA	26.000
Pallet Total Height Inches - XA	0.000
Pallet Total Weight Per - XA	0.000
Parcel Allowed - Xa	Yes
Price Code - XA	29
Product Weight - Xa	39.650
Prop 65 Label Text - XA	Blanks
Prop 65 Material - XA	Unknown
Prop 65 Reason - XA	Unknown
Prop 65 Warning Label Type - XA	Unknown
Prop 65 Warning Y/N - XA	NO
Rate Class - Xa	175.0
Retail Height - Xa	24.000
Retail Length - Xa	57.000
Retail Width - Xa	11.000
Sales Family Code - Xa	HITCH
Sales Family Description - Xa	HITCH
Sales Group Description - Xa	CL 3
Shipping Weight - Xa	47.650
Side Application Type Description - Xa	Blank
Tariff 301 - Xa	No
Title	Class 3 Trailer Hitch, 2" Receiver, Select Toyota Sienna (Exposed Main Body)
Tongue Weight (tw)	350 LB
Truckload Cases Qty - XA	0
Truckload Pallets Qty - XA	0
Truckload Units Qty - XA	0
Truckload Volume Cubic Feet - XA	0.00000
Truckload Weight - XA	0
Warranty	Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Weight Carrying Capacity (wc)	3,500 LB
Weight Distribution (wd)	5,000 LB
Weight Distribution Tongue Weight (wdtw)	500 LB

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708998180
Harmonized Tariff Code (HTS)	8708998180
NAFTA Preference Criterion Code	B
Warranty Special	Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Warranty Special UOM	TX
UPC	00612314131051
