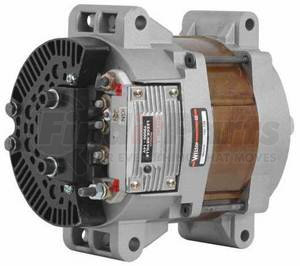

C.E. NIEHOFF C531 - ALT 14V 360A

• Highest output available 170 amp at idle (200F).
• New mounting profile allows for easier installation with existing belt and tensioner.
• Patented unique brushless construction eliminates rotating windings, brushes, and slip rings. This increases durability, extending service life, eliminating arcing and reducing electromagnetic interference (EMI).
• Optional battery voltage / temperature sense regulator allows for battery charge rate optimization in all climates and operating conditions. J1939 compatible
• Direct interchange, pad mount design is compatible with 190mm bracket.
• Overvoltage cut-out circuit (OVCO) turns the alternator off during high voltage conditions, protecting from voltage transients that threaten sensitive vehicle electronics.
• Modular rectifier assembly is equipped for easy servicing and reduces repair costs.
• Long life bearings have high temperature grease and are heat stabilized for extended service life in hot engine compartments.
• High efficiency means lower internal operating temperature, resulting in longer life. Less engine power needed to produce electric power means more engine power available for other needs.
• Designed and manufactured in the U.S.A.

Product Description

Dual Alternator Configuration
