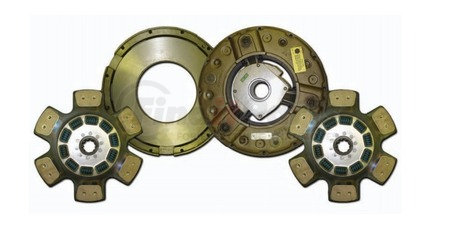

Lipe LIPE-1 - Lipe Clutch 15.5 X 2

The Gold Standard LIPE CLUTCH “THE GOLD STANDARD” LIPE CLUTCH SPECIFICATION SHEET LIPE NA NO. Spline Flywheel Description Push / Pull Plate Load Max. Torque Springs Per Disc Cover Center Stroke Adapter LIPE-1 15.5 X 2 Flat CERAMIC 6 PDL 2PL Pull 4150 2400 10 Cast 8.25 0.500” to 0.560 Y LIPE-2 15.5 X 2 Flat CERAMIC 6 PDL 2PL Pull 3720 2000 10 Cast 8.25 0.500” to 0.560 Y LIPE-3 14 X 2 Flat CERAMIC 4 PDL 2PL Pull 2505 1015 8 Stamped 7.00 0.410” to 0.470 Y LIPE-4 14 X 1.75 Flat CERAMIC 4 PDL 2PL Pull 2505 1015 8 Stamped 7.00 0.410” to 0.470 Y Mat”l Dia (Bearing Travel) Ring Install a LIPE Clutch in your truck today! Rev. 10-4-2012 The design of the “NEW LIPE™ CLUTCH” is such that the need for seven or nine spring disc is not required. The new LIPE™ CLUTCH being direct pressure, multi-lever design means they have more positive driver control, with lighter pedal effort than all OEM style clutches at comparable torque ratings. In short the driver controls the clutch with less effort in all driving conditions. LIPE NA NO. Spline Flywheel Description Push / Pull Plate Load Max. Torque Springs Per Disc Cover Center Stroke Adapter LIPE-1 15.5 X 2 Flat CERAMIC 6 PDL 2PL Pull 4150 2400 10 Cast 8.25 0.500” to 0.560 Y LIPE-1 Can be used to replace EATON numbers, 109706-22, 108925-25, and all Severe service, high torque, high horse power applications.

LIPE LIPE-1 Cross Reference

We have 2 alternatives for the LIPE-1 by LIPE:

• 109706-22
• 108925-25
