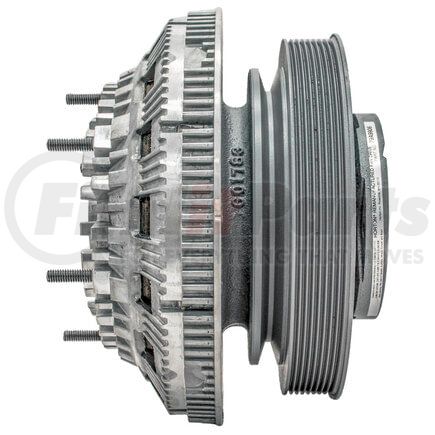

Horton 79A9906 - Air Operated Fan Clutch DriveMaster Advantage
$1,23899
+$533.33 Core Deposit
Total price w/ core: $1,772.32
MSRP: $1,730.79
Save: $491.80
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
HORTON part description
Product Description
Engine Cooling Fan Clutch
Application Summary
OSHKOSH
Features & Benefits
- Built to the same specifications as Horton Genuine models
- Easy-to-install, exact drop-in replacements
- Total cost can be less than rebuilding
- Two-year warranty for line-haul applications
- Credit for old Horton or competitor cores
- Low eddy-current speeds reduce noise, increase available horsepower, conserve fuel and minimize radiator abrasion
- Higher, spring-actuated fan speeds make sure necessary cooling is delivered
- Faster engine warm-ups in cold weather
- Premium bearings and friction liners
- High torque for turning large fans
- Lower parts count for easy installation and maintenance
Two-speed fan clutch, fan clutch, engine cooling, fan drive, performance, cooling system, horsepower, performance, reman
Product Attributes
| BACK PULLEY DIAMETER | 9 IN |
| BELT CONFIGURATION | 8K, 1V |
| Belt Groove Location | 1.26 IN |
| BOLT CIRCLE | 6 IN |
| Fan Blade Stud Length | 0.96 IN |
| FAN PILOT DIAMETER | 5 IN |
| FRONT PULLEY DIAMETER | 7.46 IN |
| Heavy Duty | TRUE |
| Overall Length | 6.81 IN |
| Stud Thread Size | .312-18 UNC 2A IN |
| VERTICAL MOUNTING DISTANCE | 4.49 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8483604040 |
| Harmonized Tariff Code (HTS) | 8483604040 |
| NAFTA Preference Criterion Code | B |
| OEM's Part Number | 98A9906 |
| Warranty Distance | 300000 |
| Warranty Distance UOM | DH |
| Warranty Special | 7500 Hours |
| Warranty Special UOM | TX |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| VMRS Code | 042003131 |
Part Interchanges
HORTON 79A9906 Cross Reference
We have 5 alternatives for the 79A9906 by HORTON:
