NATIONAL SEALS part description

Product Description

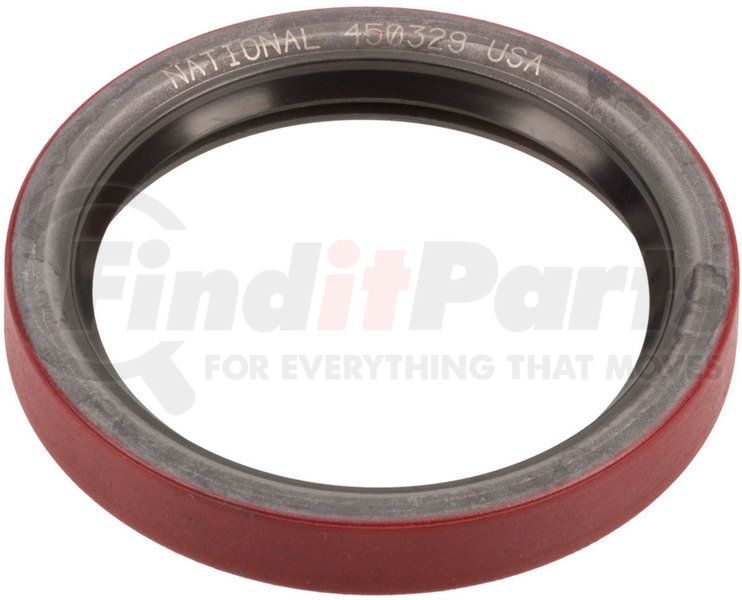

Multi-Purpose Seal

Application Summary

GM M/D Truck 78-72; IH 79-74 M/T

Features & Benefits

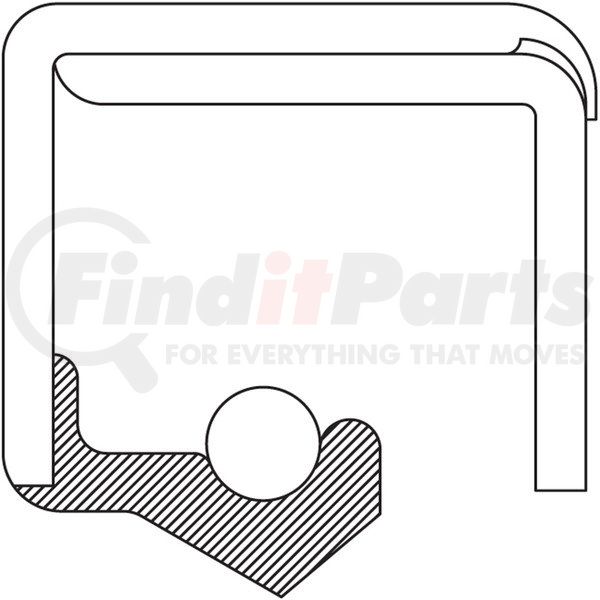

  • Design type: spring loaded; single-lip
  • Tipo de diseño: Carga de resorte; un solo labio
  • Temperature range: -40°F to 225°F / -40°C to 107°C
  • Rango de temperatura: -40°F a 225°F / -40°C a 107°C
  • Good low temperature capability
  • Buena capacidad a bajas temperaturas
  • Low swell in hydrocarbon fluids
  • Baja expansión en fluidos de hidrocarburos
  • Delivers quality and reliable performance for every type of repair
  • Ofrece un rendimiento confiable de calidad para cada tipo de reparación

Product Attributes

Inside Diameter 2.625 IN
Inside Diameter 66.680 MM
Outside Diameter 3.356 IN
Outside Diameter 85.240 MM
Width 0.468 IN
Width 11.890 MM
Material Nitrile
Part Description Oil Seal
Redicoat Yes
Sealing Material Nitrile
Series 450000
Thickness 0.468 IN
Thickness 11.890 MM
Type 45
Unit of Dimension Inch
Housing Bore 3.350 IN
Housing Bore 85.090 MM
Shaft Diameter 2.625 IN
Shaft Diameter 66.680 MM

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 4016931020
Harmonized Tariff Code (HTS) 4016931020
UPC 00724956131327
