National Seals 4244 - National 4244 Differential Pinion Seal
- Part Number
- 4244
- Manufacturer
- NATIONAL SEALS
- Description
-

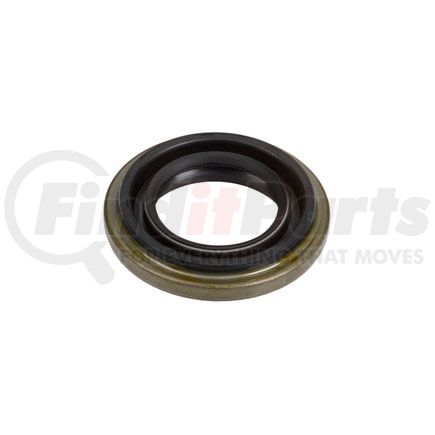

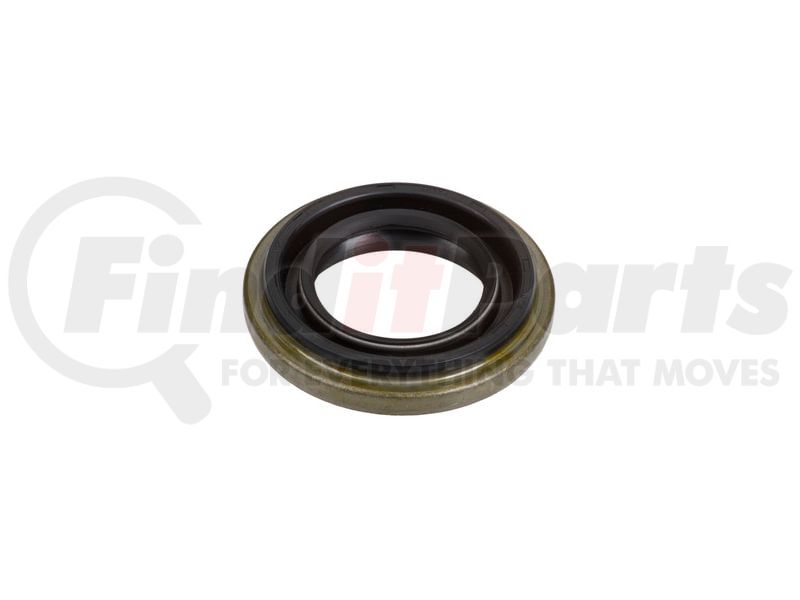

National 4244 Differential Pinion Seal
details
$1899
MSRP: $41.14
Save: $22.15
In stock
limited availability at this price!
. Learn more
NATIONAL SEALS part description
Product Description
Differential Pinion Seal
Application Summary
1990-1997 Ford Aerostar (Front Outer) (Drive: AWD / Qualifier: with 6.85 (in) Ring Gear, with Spicer 28.2 Axle, Independent Front Suspension); 1984-1990 Ford Bronco II (Front Outer) (Drive: 4WD / Qualifier: with 6.85 (in) Ring Gear, with Spicer 28 Axle, Independent Front Suspension); 1983-1997 Ford Ranger (Front Outer) (Drive: 4WD / Qualifier: with 6.85 (in) Ring Gear, with Spicer 28 Axle, Independent Front Suspension); 1994-1997 Mazda B2300 (Front Outer) (Drive: 4WD / Qualifier: with 6.85 (in) Ring Gear, with Spicer 28 Axle, Independent Front Suspension); 1994-1997 Mazda B3000 (Front Outer) (Drive: 4WD / Qualifier: with 6.85 (in) Ring Gear, with Spicer 28 Axle, Independent Front Suspension)
Features & Benefits
- Design type: spring loaded; multi-lip
- Temperature range: -40°F to 225°F / -40°C to 107°C
- Temperature range: -40degF to 225degF / -40degC to 107degC
- Good low temperature capability
- Low swell in hydrocarbon fluids
- Delivers quality and reliable performance for every type of repair
Product Attributes
| Inside Diameter | 1.552 IN |
| Inside Diameter | 39.420 MM |
| Outside Diameter | 2.402 IN |
| Outside Diameter | 61.011 MM |
| Width | 0.415 in |
| Width | 10.540 MM |
| Material | Nitrile |
| Helix Type | Bi-Directional Lip Design |
| Part Description | Oil Seal |
| Series | 4000 |
| Thickness | 0.415 IN |
| Thickness | 10.540 MM |
| Type | 72 |
| Unit of Dimension | Inch |
| Housing Bore | 2.400 IN |
| Housing Bore | 60.950 MM |
| Flanged Outside Diameter | 2.775 in |
| Flanged Outside Diameter | 69.997 mm |
| Overall Width with Side Lip | 15.080 MM |
| Overall Width with Side Lip | 0.590 in |
| Shaft Diameter | 1.552 IN |
| Shaft Diameter | 39.420 MM |
| Shaft Diameter | 1.552 IN |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (Schedule B) | 4016931020 |
| Harmonized Tariff Code (HTS) | 4016931020 |
| Canadian Harmonizing Tariff Code | 4016930000 |
| UPC | 00724956124503 |
Part Interchanges
Fits Vehicles
- Ford Ranger (1983-1997)
- Ford Bronco II (1984-1990)
- Ford Aerostar (1990-1997)
- Mazda B3000 (1994-1997)
- Mazda B2300 (1994-1997)
