Name: FEDERAL MOGUL-NATIONAL SEALS 415449
SKU: 415449
Price: 17.66 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

Product Description

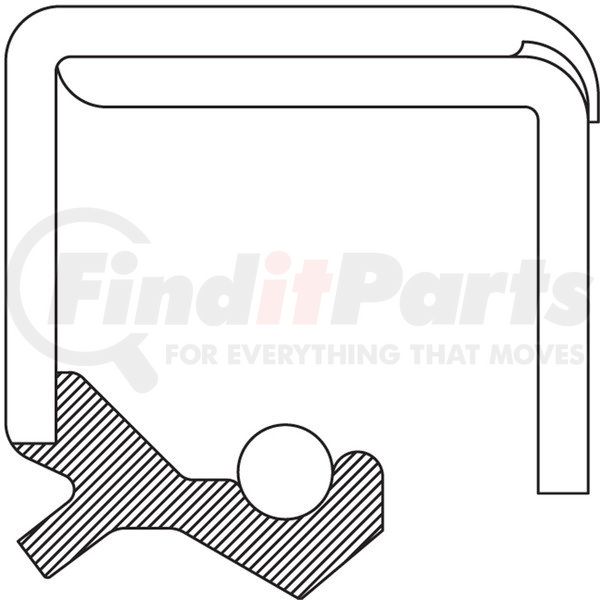

Oil Seal

Application Summary

Industrial 2.500x3.500x0.375

Features & Benefits

Design type: spring loaded; multi-lip
Tipo de diseno: Carga de resorte; multi-labio
Temperature range: -40degF to 225degF / -40degC to 107degC
Rango de temperatura: -40degF a 225degF / -40degC a 107degC
Good low temperature capability
Buena capacidad a bajas temperaturas
Low swell in hydrocarbon fluids
Baja expansion en fluidos de hidrocarburos
Delivers quality and reliable performance for every type of repair
Ofrece un rendimiento confiable de calidad para cada tipo de reparacion

Product Attributes

Material	Nitrile
Inside Diameter	2.500 IN
Thickness	0.375 IN
Outside Diameter	3.505 IN
Sealing Material	Nitrile
Footnote	Zero Duplication Part
Housing Bore (inch)	3.500 IN
Housing Bore (mm)	88.900 MM
Outside Diameter (inch)	3.505 IN
Outside Diameter (mm)	89.030 MM
Part Description	Oil Seal
Redicoat	Yes
Series	410000
Shaft (inch)	2.500 IN
Shaft (mm)	63.500 MM
Type	41
Unit of Dimension	Inch
Width (inch)	0.375 IN
Width (mm)	9.530 MM

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
UPC	00724956119899

Part Interchanges

The National Seals® is a proud designer and supplier of wheel bearings and oil seals with a focus on quality, safety, and continuous improvement. The key to its success may be attributed to its hardworking and dedicated team of engineers who keep pace with the industry to provide premium wheel end solutions for light and commercial vehicle applications. Federal-Mogul acquired the National Seal Division of the National Motor Bearing Company only in 1942. But the brand National Seals has already cemented itself as one of the most respected names in the industry. Over the years, it has remained fully committed to providing only the highest quality seals and bearings that meet or exceed OE specifications.
