Name: Moog CC705 Coil Spring Set
SKU: cc705
Price: 107.63 USD
Availability: OutOfStock

MOOG part description

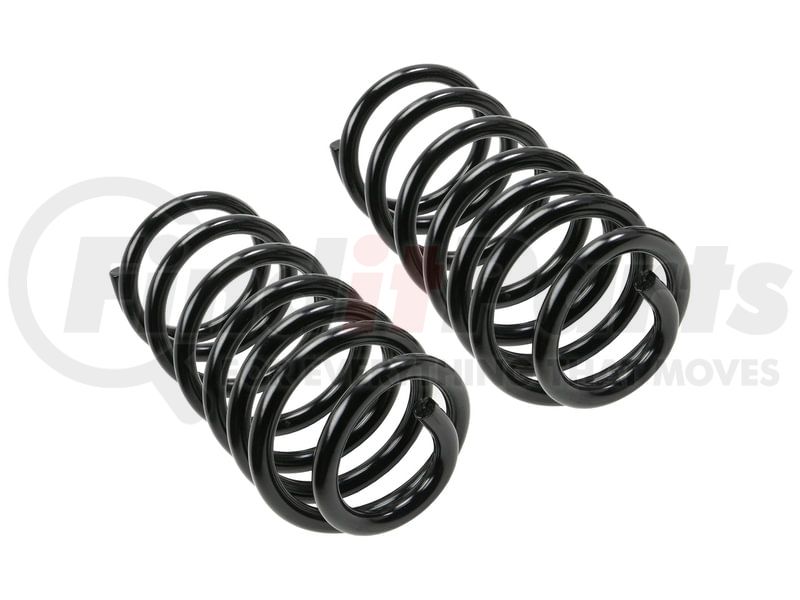

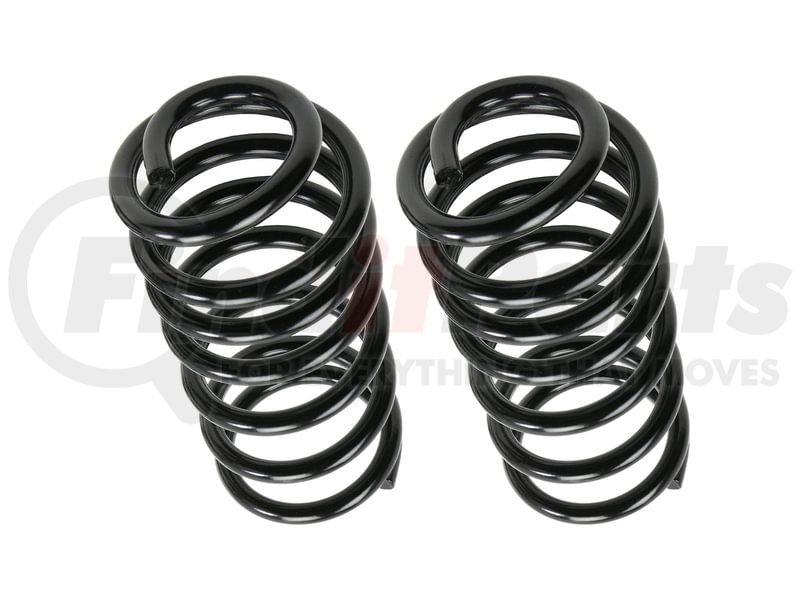

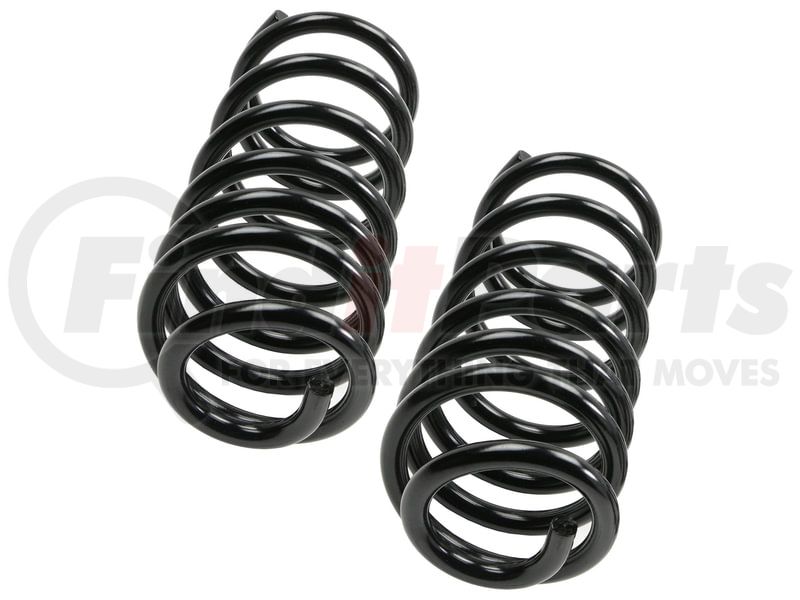

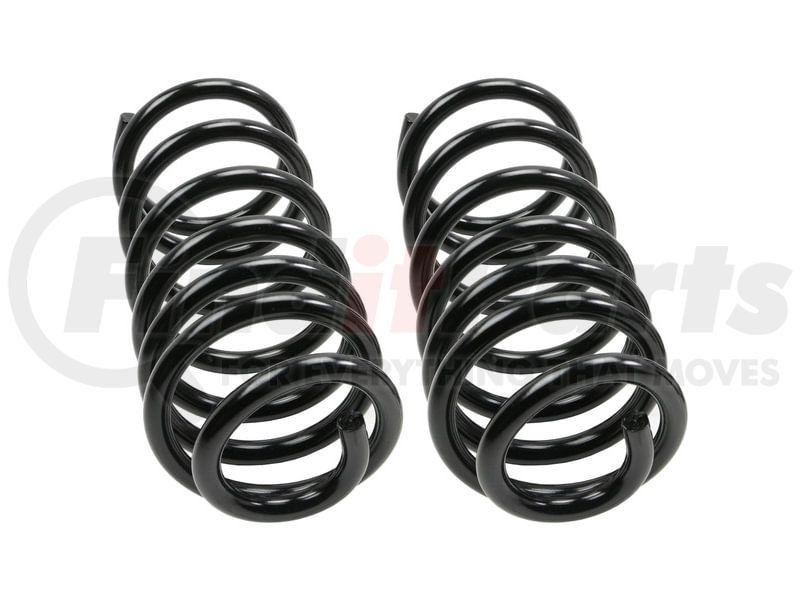

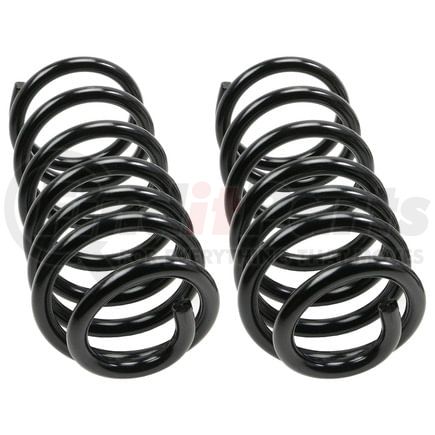

Moog Rear Coil Springs OE comparable -MOOG COIL SPRINGS, SOLD AS PAIR -- Variable Rate Springs, Made From Heat-Treated Alloy Steel For A Full Coil Rebound And Sagging Resistance, Change Resistance When Compressing, Become Progressively Stiffer As Its Load Increases, Use A Premium Urethane Tube That Lasts Much Longer, Vinyl-Coated For Corrosion Resistance And Extended Service LifeRear

Product Description

Coil Spring Set

Product Attributes

Wire Diameter	0.56 IN
Wire Diameter	14.30 MM
Spring Color	Black
Front Spring Outside Diameter	5.170 IN
Front Spring Relaxed Length	12.00 IN
Front Spring Relaxed Length	304.80 MM
Front Spring Compressed Length	8.63 IN
Front Spring Compressed Length	219.20 MM
Rear Spring Relaxed Length	12.00 IN
Rear Spring Relaxed Length	304.80 MM
Rear Spring Compressed Length	8.63 IN
Rear Spring Compressed Length	219.20 MM
Rear Spring Outside Diameter	5.170 IN
Bar Diameter (in.)	0.56
Bar Diameter (mm)	14.3
End Type 1	Squared
End Type 2	Pigtail
Free Height (in.)	12
Free Height (mm)	304.8
ID (in.)	4.03
ID (MM)	102.4
Installation Height (in.)	8.63
Installation Height (mm)	219.2
Load (lbs)	810
Spring Rate (lbs Per in.)	240
Spring Type	Variable Rate

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708806590
Harmonized Tariff Code (HTS)	8708806590
Remanufactured Part	N
UPC	00080066121802

Part Interchanges

MOOG CC705 Cross Reference

We have 1 alternatives for the CC705 by MOOG:

080066121802

Fits Vehicles

Chrysler Dynasty (1988-1991)
Plymouth Reliant (1981-1984)
Dodge Dynasty (1988-1991)
Dodge Aries (1981-1984)
Chrysler Town & Country (1982, 1984)
Chrysler New Yorker (1988-1993)
