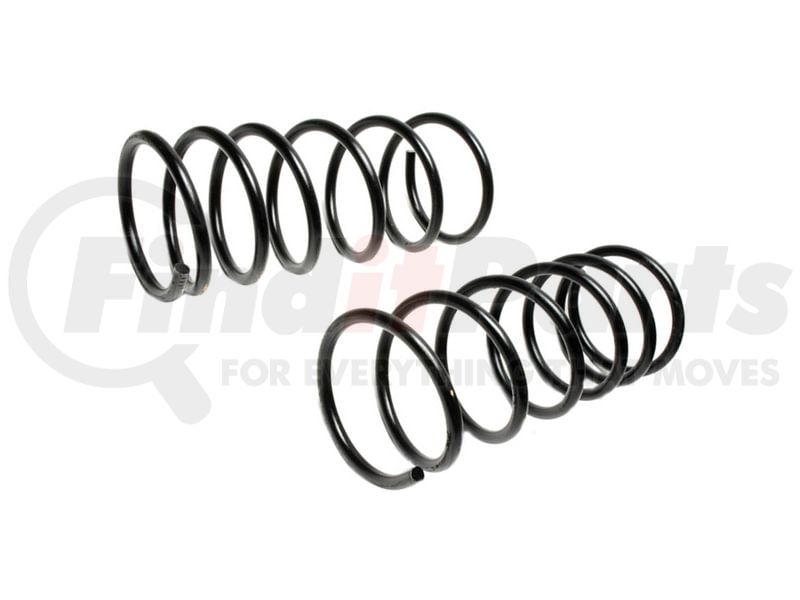

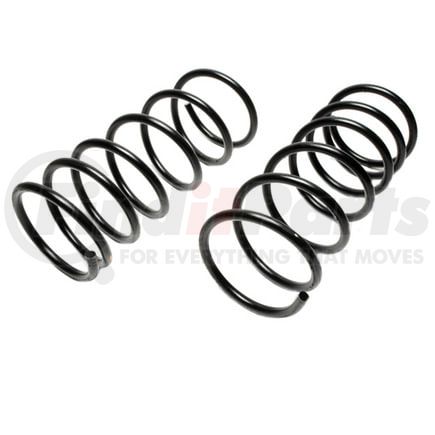

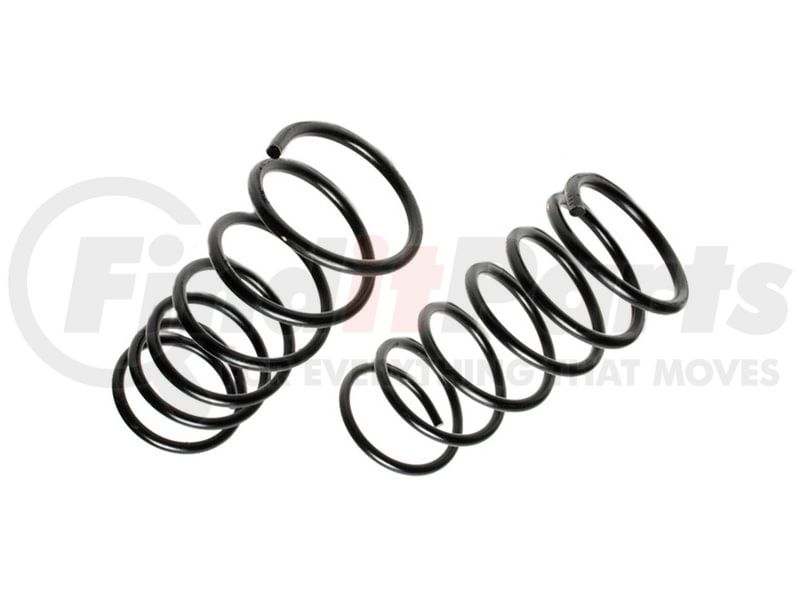

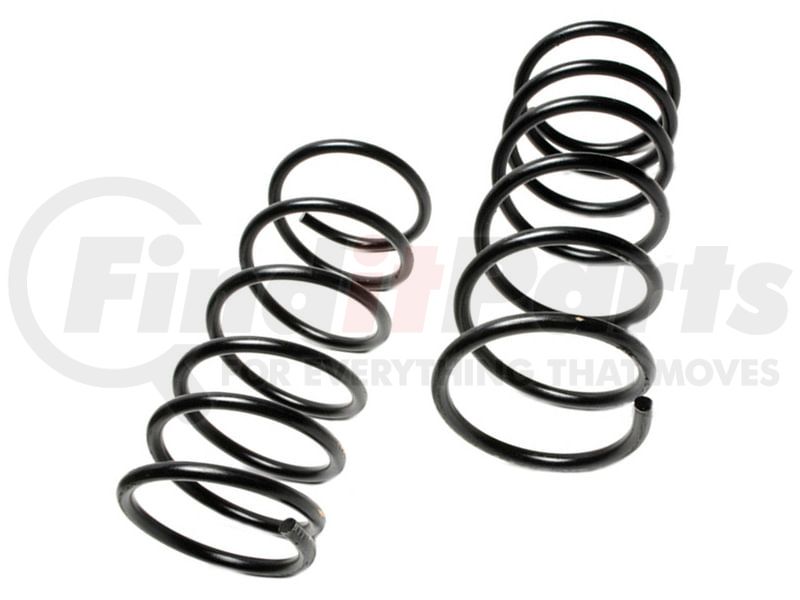

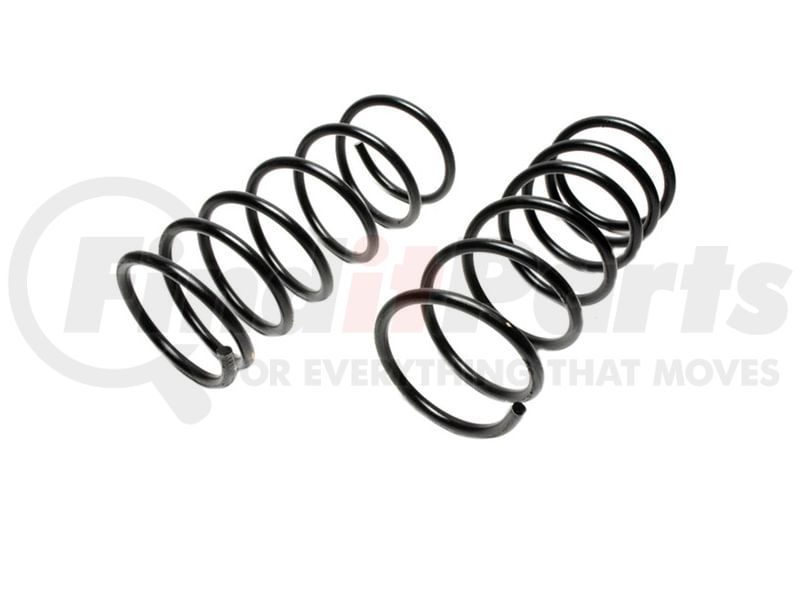

MOOG CC240 Part Description
Passenger Car/Light Truck Applications
| Make | Model | Year |
|---|---|---|
| TOYOTA | CAMRY | 1989-1987 |
MOOG CC240 Specifications
Product Attributes
| Wire Diameter | 0.56 IN |
| Wire Diameter | 14.30 MM |
| Spring Color | Black |
| Front Spring Outside Diameter | 6.540 IN |
| Front Spring Relaxed Length | 15.09 IN |
| Front Spring Relaxed Length | 383.30 MM |
| Front Spring Compressed Length | 11.00 IN |
| Front Spring Compressed Length | 279.40 MM |
| Rear Spring Relaxed Length | 15.09 IN |
| Rear Spring Relaxed Length | 383.30 MM |
| Rear Spring Compressed Length | 11.00 IN |
| Rear Spring Compressed Length | 279.40 MM |
| Rear Spring Outside Diameter | 6.540 IN |
| Bar Diameter (in.) | 0.56 |
| Bar Diameter (mm) | 14.3 |
| End Type 1 | Squared |
| End Type 2 | Tangential |
| Free Height (in.) | 15.09 |
| Free Height (mm) | 383.3 |
| ID (in.) | 5.43 |
| ID (MM) | 138.1 |
| Installation Height (in.) | 11 |
| Installation Height (mm) | 279.4 |
| Load (lbs) | 450 |
| Spring Rate (lbs Per in.) | 110 |
| Spring Type | Variable Rate |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Remanufactured Part | N |
| UPC | 00080066182230 |
MOOG CC240 Cross References
MOOG CC240 Fits Vehicles
- Toyota Camry (1987-1989)
