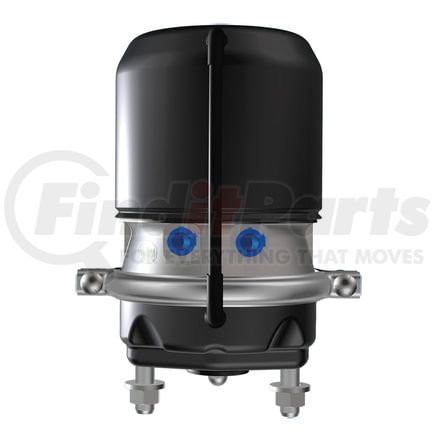

(888) 312-8812 Login SignupMGM BRAKES MJB2030ET052 Air Brake Chamber - Combination, Air Disc Model
$47899
21 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
MGM BRAKES MJB2030ET052 Part Description
Manufacturer
Product Description
Air Disc - Piston Brake Chamber
Features & Benefits
- Tamper Resistant Design
- Light Weight
- Compact
- Integral Release Bolt
- Non-Coil Clash Power Spring
- Steel Head, Epoxy Coated
- Available with 1,922 - 2,450 lbs. of Push-Rod Braking Force @ 1.25 inch Stroke/Service Brake Sizes 16-30
General Description
Dry Bulk Chemicals
Features and Benefits
- Tamper Resistant Design
- Lighter Weight
- 3 Inch (76.2 mm) Long Stroke
- Compact Size
- New Patented Integral Release Bolt Mechanism -Minimal Bolt Protrusion (Approx. 1.25 inch (31.8 mm) Protrusion on "Long Stroke" Models When Manually Released)
- Non-Coil Clash Power Spring
- Increased Corrosion Resistance -Steel Head, Epoxy Coated
- Available With 1,922-2,450 Lbs. (871.8 kg-1111.3 kg) of Push-Rod Braking Force @ 1.25 inch (31.8 mm) Stroke/Service Brake Sizes 16-30
- Heavy Duty 8 Gauge NPC Standard
Technical Specifications
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) | 22.71 lb (10.3 kg) |
| A | 10.99" (279.1 mm) |
| B | 7.50" (190.5 mm) |
| C | 6.90" (175.3 mm) |
| D | 4.75" (120.7 mm) |
| E | M16 x 1.5 - 6g |
| Inlets | 3/8" - 18 NPTF (M16 x 1.5 - 6H) |
| XB | 15 mm |
MGM BRAKES MJB2030ET052 Specifications
Product Attributes
| Breather Tube | Breather Tube |
| Chamber Type | Air Disc - Piston Brake |
| Diaphragm Diameter | Rubber IN |
| Mounting Bolt Length | 1.650 IN |
| Mounting Bolt Thread | M16 X 1.5 |
| Port Size | M16 X 1.5 |
| Spring Size | 30 |
| Service Size | 20 |
| Stroke | 3.00 IN |
| UNIT | Production |
| Diaphragm | Rubber |
| Push Rod Length - no yoke | 20.00 |
Additional Information
| Country of Origin (Primary) | US |
| 21 | |
| VMRS Code | 013013000 |
