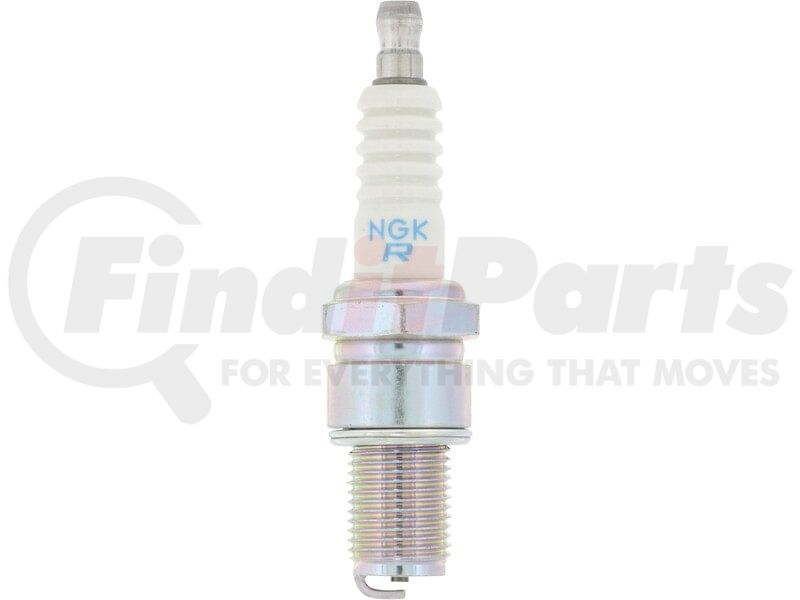

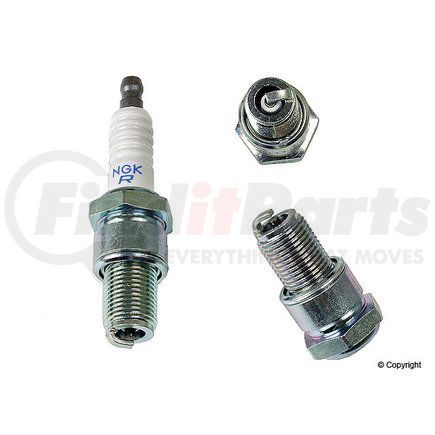

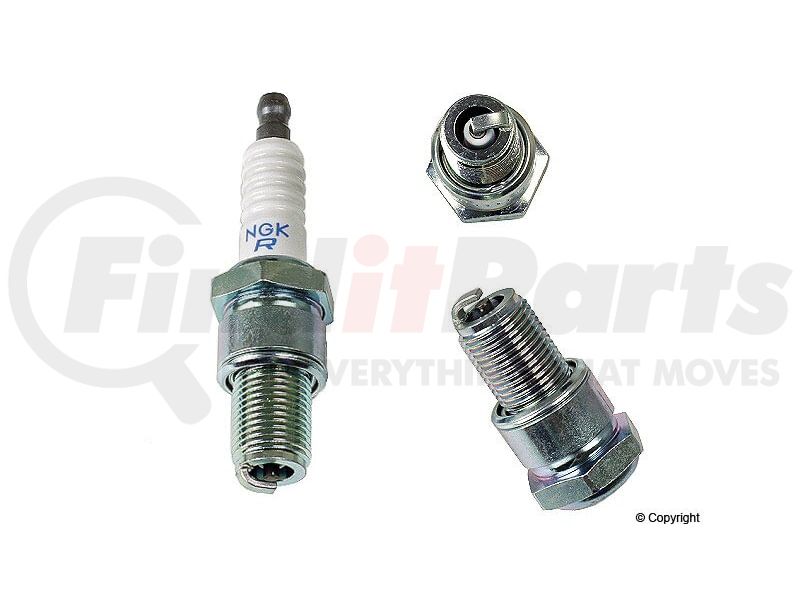

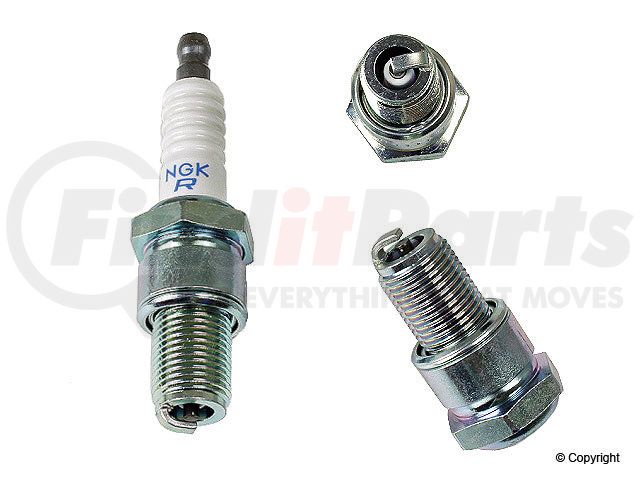

NGK Spark Plugs BR9ES - NGK Standard Spark Plug
- Part Number
- BR9ES
- Manufacturer
- NGK SPARK PLUGS
- Description
-
NGK Standard Spark Plug
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
NGK SPARK PLUGS part description
Product Description
NGK Standard Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
Product Attributes
| Stock Number | 5722 |
| Part Number | BR9ES |
| Short Style Spark Plug | No |
| Service Number | BR9ES |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |

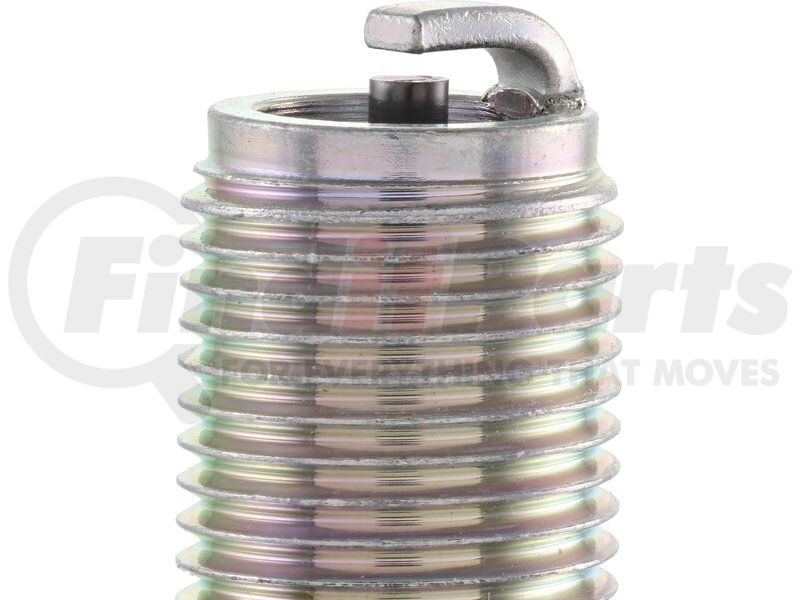

| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer Included | Yes |
| Grade Type | Regular |
| Electrical Terminal Type | Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .032 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 13/16" |
| Insulator Height | 2.20 IN |
| Manufacturer Heat Range | 9 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| 6648 | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| 9459 | No |
| 9506 | 0.04 IN |
| 9608 | Standard |
| 9745 | Crush |
| 9805 | Non-Projected |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | TH |
| UPC | 00087295157220 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
Part Interchanges
- NGK 5722
- Honda 98079-59816
- Honda 98079-59876
- Honda 98079-59847
- DENSO Auto Parts W27ESR
- DENSO Auto Parts 4045
- DENSO Auto Parts W27ESR-U
- John Deere TY26717
- John Deere TY26718
- Harley Davidson HD7-8
- E3 Spark Plugs E3.31
- Kawasaki 92070-1053
- Kawasaki 92070-1109
- Kawasaki 92070-1157
- Champion Spark Plug 818
- Champion Spark Plug 8902-2
- Champion Spark Plug QN2C
- Champion Spark Plug QN2
- Champion Spark Plug 818C
- Champion Spark Plug RN2
- Champion Spark Plug 8902
- Champion Spark Plug 8902-1
- Champion Spark Plug RN2C
- Autolite 3702
- Autolite 4063
- Autolite 3703
- Autolite 4062
- Robin 065-01402-50
- Suzuki 09482-00098
- Suzuki 09482-00127
- Suzuki 09482-00349
- Yamaha 94701-00188
- Yamaha 94702-00188
- Yamaha 94703-00188
- Aprilia 8206915
- Peugeot 754050
- Peugeot 801755
- Bosch WR3CC
- Bosch 7529
- ACDelco R41CXL
- ACDelco S40XLR
- ACDelco S41XLR
- ACDelco R41XL
- Piaggio AP8206915
- 1765012
- W3CC
- N2G
- W27ES
- AG701
- 4053
- S41XL
- 141
- 09482-00066
- 98079-59840
- 756762
- 065-01401-60
- 94701-00046
- 92070-054
Fits Vehicles
- Sno-Jet S/S Jet 433 (1971)
- Arctic Cat Jag 4000 (1981)
- Sno-Jet Star-Jet 433 (1973)
- Sno-Jet Super-Jet 433 (1972)
- Sno-Jet Super-Jet 338 (1970)
- Sno-Jet Star-Jet 292 Hirth (1970-1972)
- Sno-Jet Star-Jet +2 338 (1972)
- Sno-Jet Star-Jet 338 (1971, 1973)
- Sno-Jet SST F/A 440 (1975-1976)
- Sno-Jet SST F/A 340 (1975-1976)
- Sno-Jet SST 440 (1973-1976)
- Sno-Jet SST 433 (1972)
- Sno-Jet SST 340 (1973-1974)
- Sno-Jet SST 338 (1972)
- Sno-Jet SST 292 (1972)
- Sno-Jet S/S Jet 338 (1971)
- Sno-Jet S/S Jet 292 (1971)
- Arctic Cat Panther 440 (1973)
- Cobra CX65 (2012-2018)
- Arctic Cat El Tigre 5000 F/C (1981)
- Harley-Davidson SXT125 (1976-1977)
- Harley-Davidson SX175 (1974-1975)
- Harley-Davidson SS250 (1975-1977)
- Harley-Davidson SS175 (1976-1977)
- Harley-Davidson SS125 (1976-1977)
- Polini X5P Liquid (2007-2010)
- Polini X5P Air (2006-2010)
- Polini X3R (2006-2010)
- Polini X3P Air (2006-2010)
- Polini X1R (2006-2010)
- KTM 85 XC (2008)
- Piaggio Typhoon (2007)
- KTM 85 SX (19/16) (2007)
- KTM 85 SX (17/14) (2007)
- KTM 105 SX (2007)
- Honda NSR50 (2004)
- Gas Gas SM 50 (2004)
- Aprilia Tuono 50 (2004-2005)
- KTM 200 SX (2003-2004)
- Aprilia RS 50 (2002-2005)
- Vespa ET2 (2001)
- Gas Gas EC Rookie 50 (2001)
- LEM LX4 (1999-2006)
- Cobra KING (1998-1999)
- KTM 125 Sting (1997-1998)
- Arctic Cat Powder Extreme (1997)
- Yamaha WR200 (1992)
- Arctic Cat Lynx Mountain Cat (1992-1993)
- Arctic Cat Wildcat Mountain Cat (1990)
- Arctic Cat Panther Mountain Cat (1990)
- Arctic Cat Wildcat 650 (1990)
- Arctic Cat Jag AFS Long Track (1990)
- Arctic Cat Jag AFS Deluxe (1990)
- Arctic Cat Jag AFS (1989-1990)
- Arctic Cat Cougar Mountain Cat (1989-1990)
- Arctic Cat Cheetah Touring (1988-1991)
- Honda TRX250R (1987-1988)
- Arctic Cat Super Jag (1987-1990)
- Arctic Cat Jag 440 (1987-1988)
- Arctic Cat El Tigre 5000 (1977, 1987-1988)
- Arctic Cat Jag (1986)
- Arctic Cat Cheetah 500 F/C (1986-1988)
- Arctic Cat Cougar (1985-1990)
- Arctic Cat Cougar SE (1985)
- Kawasaki ZX750E Turbo (1984-1985)
- Kawasaki KDX80 (1984)
- Kawasaki KDX250 (1984, 1991-1994)
- Honda ATC250R (1984-1986)
- Kawasaki ZX750 GPZ (1983-1985)
- Kawasaki KX60 (1983-1984)
- Kawasaki KDX200 (1983-1996)
- Honda CR60R (1983-1984)
- Yamaha YZ80 (1982-1983)
- Suzuki RM80 (1982, 1984-1985)
- Kawasaki KE125 (1982)
- Husqvarna XC125 (1982-1986)
- Honda FL250 Odyssey (1982-1984)
- Yamaha YZ60 (1981-1983)
- Suzuki RS250 (1981)
- John Deere Sportfire (1981-1982)
- John Deere Trailfire 440 (1981-1982)
- John Deere Liquifire 440 (1981-1982)
- Arctic Cat Panther West (1981)
- Yamaha YZ50 (1980)
- Yamaha IT125 (1980-1981)
- Yamaha DT175 (1980-1981)
- Kawasaki KX80 (1980-1982)
- Kawasaki KX420 (1980-1981)
- Kawasaki KDX175 (1980-1982)
- Honda CR80R (1980-1985)
- Arctic Cat Trail Cat 400 (1980-1981)
- Can-Am 400 MX-6 (1980)
- Arctic Cat Pantera ES (Electric Start) (1980-1981)
- Yamaha IT175 (1979-1981)
- Arctic Cat Panther (1979-1981, 1984-1990)
- Arctic Cat Pantera (1979-1981, 1985-1990)
- Suzuki PE175 (1978)
- Honda CR250R (1978-1981)
- Arctic Cat Pantera 5000 F/C (1978)
- Arctic Cat Pantera 5000 F/A (1978)
- Yamaha IT250 (1977-1981, 1983)
- Can-Am 175 MX-3 (1977)
- Bultaco Pursang 250 (1977-1979)
- Yamaha TY175 (1976)
- Arctic Cat Z 250 (1977)
- Arctic Cat Panther 4000 (1977-1978)
- Yamaha SRX440 (1976-1980)
- Yamaha EX440 (1976-1981)
- Yamaha EX340 (1976-1978)
- Suzuki RM370 (1976-1977)
- Suzuki RM250 (1976-1979)
- Suzuki RM100 (1976-1979)
- Suzuki GT250 (1976-1977)
- Yamaha MX400 (1975)
- Yamaha DT400 (1975-1976)
- Suzuki RM125 (1975-1979)
- Kawasaki KX400 (1975-1976)
- Yamaha YZ250 (1974-1981)
- Yamaha YZ125 (1974-1976)
- Yamaha GPX433 (1974-1975)
- Yamaha GPX338 (1974-1975)
- Yamaha MX125 (1974-1976)
- Yamaha DT360 (1974)
- Kawasaki KX250 (1974-1976, 1978-1982)
- Kawasaki KX125 (1974-1976, 1978-1982)
- Arctic Cat El Tigre 295 (1974)
- Yamaha RT3 (1973)
- Yamaha SR643 (1973, 1975)
- Yamaha SR433 (1973, 1978)
- Yamaha GP292 (1973-1974)
- Honda CR250M (1973-1976)
- Yamaha RT2 (1972-1973)
- Yamaha EW643 (1972-1973)
- Yamaha AT2M (1972)
- Yamaha SS433 (1971)
- Yamaha RT1 (1970-1971)
- Yamaha AT1M (1970-1971)
- Yamaha SS338 (1969)
- Yamaha AT1 (1969-1971)
