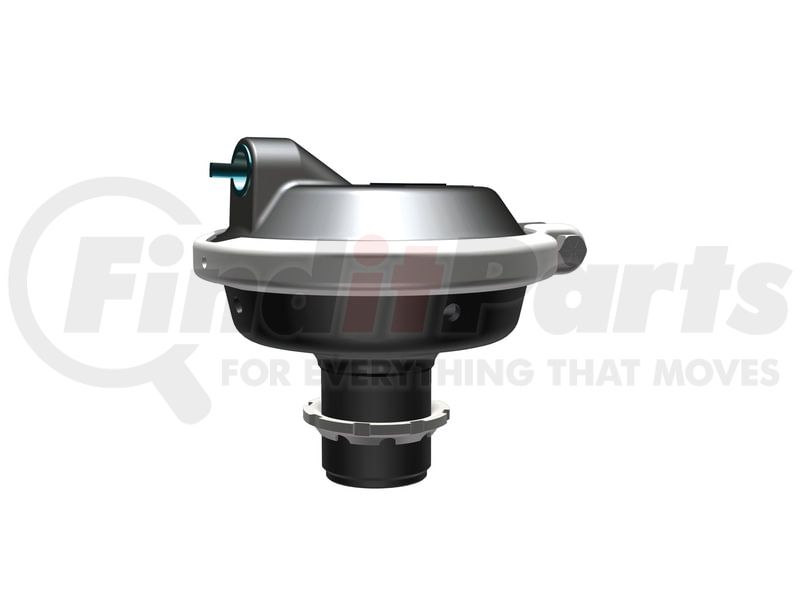

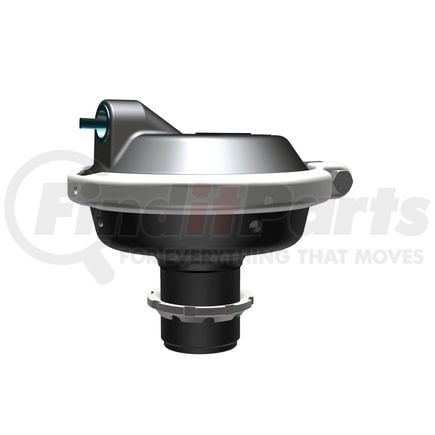

(888) 312-8812 Login SignupMGM BRAKES 1012002 Air Brake Chamber - 4.10", Meritor
$18299
2 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
MGM BRAKES 1012002 Part Description
Manufacturer
Product Description
Wedge Brake Chamber
Features & Benefits
- Formed Steel Non-Pressure Chamber
- Epoxy-Coated
- Heavy Duty Nylon Reinforced Diaphragms
- Top and Side Air Ports - 3/8" NPTF
Service Chamber
MGM BRAKES 1012002 Specifications
Product Attributes
| Chamber Type | Wedge Brake |
| Diaphragm Diameter | Rubber IN |
| Mounting Bolt Length | 1.562 IN |
| Mounting Bolt Thread | 1 3/4-12 UN-2A |
| Port Size | 3/8-18 NPTF |
| Spring Size | N/A |
| Service Size | 12 |
| Stroke | 1.75 IN |
| Tube Length (MERITOR) | 4.100 IN |
| UNIT | Aftermarket |
Additional Information
| Country of Origin (Primary) | US |
| 2 | |
| VMRS Code | 013010034 |
