GATES G433143240X Part Description
Manufacturer
Product Description

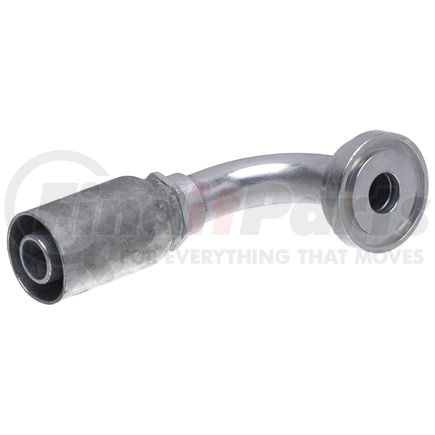

Code 61 O-Ring Flange - 90 Bent Tube (GL)
Features & Benefits
- Designed for larger-diameter hoses - up to 4 in. I.D.
- Designed for larger-diameter hoses – up to 4 in. I.D.
- Short body length provides the necessary grip for low pressure hose requirements
- Bubble pattern crimp design ensures optimal sealing to helical wire hoses on return vacuum applications
GATES G433143240X Specifications
Product Attributes
| Coupling Description | GL Code 61 O-Ring Flange - 90 Bent Tube |
| Industrial Description | 32GL-40FL90-114XBULK |
| Inside Diameter | 2 IN |
| Hydraulic Hose Recommendation | Gates GMV, MegaTech G5TB, MegaTech 500 |
| Flange Thickness | .38 in |
| Flange Diameter | 3.31 IN |
| Drop Length | 4.5 IN |
| Cut-Off Length | 5.71 IN |
| Length | 8.77 IN |
| Inside Diameter | 50.8 MM |
| Flange Thickness | 9.7 MM |
| Flange Diameter | 84.1 MM |
| Drop Length | 114.3 MM |
| Cut-Off Length | 145 MM |
| Length | 222.8 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00770075423089 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G433143240X Part Interchanges
| Brand | Part Number |
|---|---|
| NAPA | G43314-3240X |
