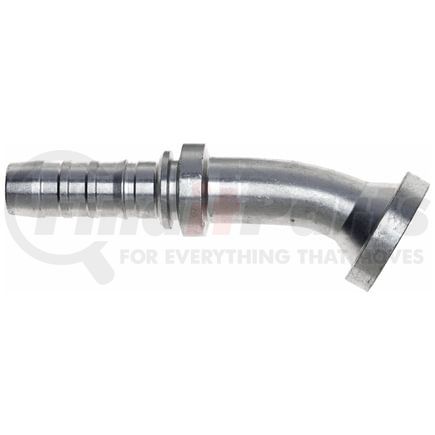

(888) 312-8812 Login SignupGATES G20354-1620 Code 62 O-Ring Flange Heavy - 30 Bent Tube (GlobalSpiral)
Tap to view 2 more
$13299
Limited availability at this price!
5 Day Lead Time
Get it by Thursday, Jan 22
GATES G20354-1620 Part Description
Manufacturer
Product Description
Code 62 O-Ring Flange Heavy - 30 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20354-1620 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Code 62 O-Ring Flange Heavy - 30 Bent Tube |
| Industrial Description | 16GS-20FLH30M |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 6000 PS |
| Flange Thickness | .41 in |
| Flange Diameter | 2.13 IN |
| Drop Length | 1.5 IN |
| Cut-Off Length | 4.3 IN |
| Length | 6.22 IN |
| Inside Diameter | 25.4 MM |
| Flange Thickness | 10.4 MM |
| Flange Diameter | 54.1 MM |
| Drop Length | 38.1 MM |
| Cut-Off Length | 109.1 MM |
| Length | 158 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00770075356288 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20354-1620 Cross References
| Brand | Part Number |
|---|---|
| NAPA | G20354-1620 |
