GATES TCKWP134 Part Description
Manufacturer
Product Description
PowerGrip Premium Timing Component Kit with Water Pump (TCKWP)
Application Summary
1993-1987 Mazda, B2200 Pickup, 4-Cyl. 2.2 L, Timing Component Kit
Features & Benefits
- Total solution for any application: Includes belts, idler(s), tensioners, tensioner springs, water pump, supporting hardware, detailed installation instructions and Technical Service Bulletins for troublesome applications
- Water pumps are designed and built for long lasting, efficient cooling
- Hydraulic tensioners included, where needed
- Everything you need to do the job right, all in one box
- Gates warranty matches the original manufacturer's timing belt replacement intervals - not just for parts - but also for labor and other associated costs
- Gates warranty matches the original manufacturer's timing belt replacement intervals – not just for parts – but also for labor and other associated costs
GATES TCKWP134 Specifications
Product Attributes
| Grade Type | OE Performance |
| Number of Components | 4 |
| Installation Tool Included | No |
| Belt Quantity | 1 |
| Belt Width | 1 IN |
| Cog Quantity | 110 |
| Timing Marks | No |
| Belt Material | HSN, Fiberglass Cord |
| Tooth Type | Modified Curvilinear (III) |
| Tensioner Quantity | 1 |
| Tensioner Type | Spring |
| Idler Quantity | 1 |
| Bolt Included | No |
| Spring Quantity | 0 |
| Bolt Quantity | 0 |
| Engine Water Pump Quantity | 1 |
| Gasket Or Seals Included | Yes |
| Gasket Quantity | 2 |
| Seal Quantity | 1 |

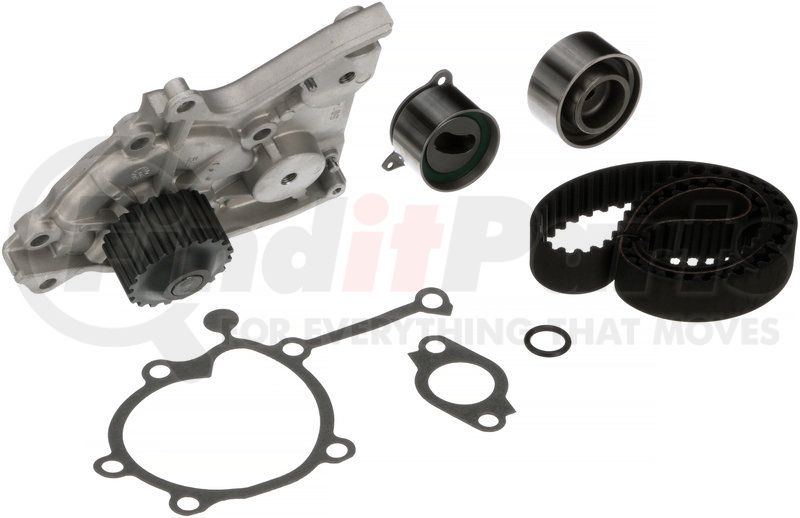

| Contents | Belt, Tensioner, Idler, Water Pump, 2 Gaskets, O-Ring |
| Instruction Sheet Number | 0098-1608 |
| Installation Instructions Included | Yes |
| Belt Top Color | Black |
| Timing Belt Included | Yes |
| Springs Included | No |
| Tensioner Included | Yes |
| Idler Pulley Included | Yes |
| Timing Belt Width 1 (in) | 1 |
| Timing Belt Width 1 (mm) | 25 |
| Timing Belt 1 Teeth Quantity | 110 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8413309090 |
| UPC | 00770075453741 |
| VMRS Code | 045008153 |
| UNSPSC | 26111811 |
GATES TCKWP134 Part Interchanges
| Brand | Part Number |
|---|---|
| SKF | VKMA94222SWP, VKMC94222 |
| ACDelco | TCKWP134 |
| Dayco | WP134K1A, WP134K1AS |
| Carquest | TCKWP134 |
| Goodyear | GTKWP134 |
| Import Direct | 24471K |
| NAPA | BWPK42129, WPK42129 |
| GMB | 3445-0134 |
GATES TCKWP134 Fits Vehicles
- Mazda B2200 (1987-1993)
- Mazda 626 (1988-1992)
- Mazda MX-6 (1988-1992)
- Ford Probe (1989-1992)
