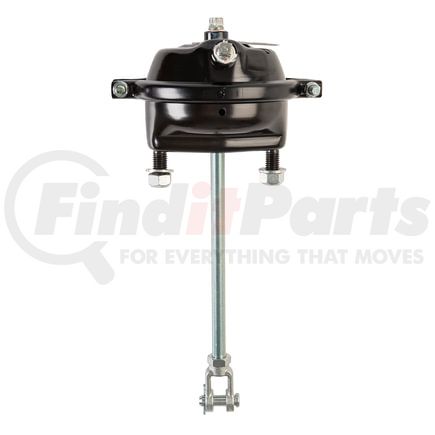

(888) 312-8812 Login SignupHALDEX SC20L Air Brake Chamber - Single Diaphragm, T20, 2.5 in. Stroke Length, Long Stroke
Tap to view 1 more
$6899
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 25
HALDEX SC20L Part Description
Manufacturer
Product Description
Service Chamber - Long Stroke - Size T20
Application Summary
Service Chamber - Long Stroke - Size T20
Features & Benefits
- Anchorlok® Spring Brake , Model Types 2030-XLS, 24S, 24S-LS, 2424, 2424-LS, 2430, 2430-LS and 2430-XLS Service Side , 1624, 2024 and 2424 Emergency, T-24 Clamp Band Assembly
- Anchorlok(R) Spring Brake , Model Types 2030-XLS, 24S, 24S-LS, 2424, 2424-LS, 2430, 2430-LS and 2430-XLS Service Side , 1624, 2024 and 2424 Emergency, T-24 Clamp Band Assembly
- Has powder-coated steel pressure housing with resistance welded air ports for long-term durability
- World-class diaphragm that’s made of high-quality rubber compound for superior flexibility and heat- and cold-resistance
- With sturdy powder-coated service housing that can withstand corrosion
- Orange Alert® Stroke Indicator effectively informs the user if brake maintenance is required
- Self-piloting dust shield extends air brake system lifespan
- Air port threads of 3/8-18 NPTF to provide a more leak-free seal
- 150 psi maximum air pressure
Haldex Air Brake Chamber
Keep the air brake system on your medium and heavy duty trucks, trailers, and off-highway vehicles working at its peak performance with a high-quality Haldex air brake chamber. This T12 service chamber is specially designed to resist extreme temperatures and can fit most drum brake applications.
HALDEX SC20L Specifications
Product Attributes
| Diaphragm Type | Single |
| Ram Stroke | 2.5 in. |
| Air Port Thread Diameter | 3/8-18 NPTF |
| Air Port Position | 90° |
| Bracket to End of Spring Housing Length | 4.2 in. |
| Freight Class | 70 |
| Maximum Pressure | 150 PSI |
| Push Rod Length | 10 in. |
| Service Chamber Size | 20 |
| Service Clampband Position | 0° |
| Service Clampband Size | 8.6 in. |
| Stroke Type | Long |
| Stud Distance | 4.75 in. |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412310080 |
| Harmonized Tariff Code (HTS) | 8412310080 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | DH |
| Warranty Special | See Haldex Aftermarket Product warranty Policy (L20221W).pdf |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| Core Group | - |
| UPC | 00767653299228 |
| VMRS Code | 013010034 |
HALDEX SC20L Cross References
| Brand | Part Number |
|---|---|
| 013-004-027, HDXSC20L | |
| ANCHORLOK | 127200002, 127200004, 127200005, SC20L |
| Anchorloc | 127200002, 127200004, 127200005, SC20L |
| Daimler | HDX127200304, HDX127200305, HDX127200306 |
| Daimler Truck North America | HDX127200304, HDX127200305, HDX127200306 |
| Freightliner | HDX127200304, HDX127200305, HDX127200306 |
| Haldex | 127200211, 127200212, 127200213, 127200214, 127200303, 127200322, B253276T20, MA36202, S127200016, S127200017, S127200018 |
| Hendrickson | 004764-1, 011237 |
| MGM Brakes | 1421001, 1621001, 1621038, 1621039, 1621078, 85103654 |
| Meritor | B25-3275T20 |
| Midland | 127200201, 127200211, 127200212, 127200213, 127200214, 127200303 |
| N/A | 127200211, 127200201, B25-3275T20, 127200002, HDX127200304, 20527309, 004764-1, 1421001, V19 SC20L, 22424191 |
| RYDER FLEET PROD. | V19 SC20L |
| Ryder | V19 SC20L |
| Volvo | 20527309, 85107458, 22424191 |
| Volvo GM Heavy Truck | 22424191 |
| WORLD AMERICAN | WA20SC3 |
HALDEX SC20L Customer Reviews
No reviews yet
Be the first to review this product!
HALDEX SC20L Manufacturer Information
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
