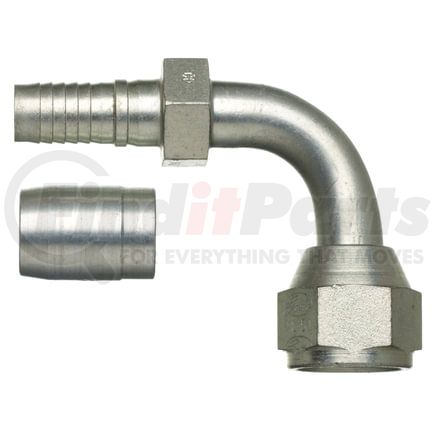

Gates G35212-0808 - Dual Seat Female JIC 37/SAE 45 Flare Swivel - 90 Bent Tube - Steel (C5E Hose)
$4649
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Dual Seat Female JIC 37/SAE 45 Flare Swivel - 90 Bent Tube - Steel (C5E Hose)
Features & Benefits
- Designed to perform with Gates C5E Hose
- Zinc-plated carbon steel
- Meets DOT FMVSS 106-74 Type AII
Product Attributes
| Coupling Description | Field Attach C5E Dual Seat Female JIC 37/SAE 45 Flare Swivel - 90 Bent Tube - Steel |
| Industrial Description | 8C5E-8RFJSX90 |
| Thread Size | 3/4-16 |
| Inside Diameter | .406 IN |
| Hydraulic Hose Recommendation | Gates C5E |
| Stem Hex Size | .6875 IN |
| Nut Hex Size | .875 IN |
| Drop Length | 1.09 IN |
| Cut-Off Length | 1.54 IN |
| Length | 2.54 IN |
| Inside Diameter | 10.3 MM |
| Drop Length | 27.7 MM |
| Cut-Off Length | 39.1 MM |
| Length | 64.5 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053168709 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
