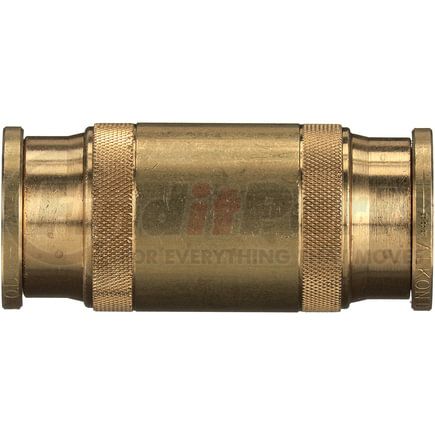

GATES G31400-0808 Part Description
Manufacturer
Product Description
Air Brake Union (SureLok)
Features & Benefits
- Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring
- Tube support prevents tube collapse during severe loading conditions
- Collet teeth grip the tube, holding it firmly in the fitting
- Internal O-Ring provides a seal and necessary interference between tube and fitting body
GATES G31400-0808 Specifications
Product Attributes
| Maximum Working Pressure | 150 PS |
| Temperature Rating | -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C) |
| Material | 360 Brass |
| Seal Material | Ethylene Propylene |
| Coupling Description | SureLok Air Brake Union |
| Industrial Description | 8AB-8AB |
| Outside Diameter | .5 IN |
| Length | 2.01 IN |
| Length | 51.1 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7412200015 |
| UPC | 00029769151891 |
| VMRS Code | 059032033 |
| UNSPSC | 27121700 |
GATES G31400-0808 Part Interchanges
| Brand | Part Number |
|---|---|
| Parker | 62PMT-8 |
| Weatherhead | 1862X8 |
| Alkon Corp | AQ62-DOT-8 |
| NAPA | G31400-0808 |
| IMI Norgren | 94 450 307 |
GATES G31400-0808 Cross References
We have 1 alternatives for the G31400-0808 by GATES:
