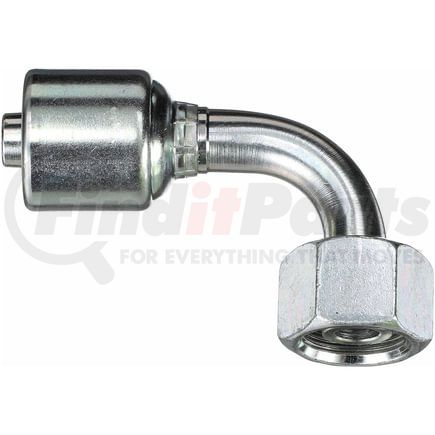

Gates G25730-0410 - Female DIN 24 Cone Swivel - Heavy Series with O-Ring - 90 Bent Tube (MegaCrimp)
$7749
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Female DIN 24 Cone Swivel - Heavy Series with O-Ring - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
Product Attributes
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Outside Diameter | 10 MM |
| Nut Hex Size | 22 MM |
| Drop Length | 1.44 IN |
| Cut-Off Length | 1.34 IN |
| Length | 2.15 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | DIN |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 24 |
| DIN Series | Heavy |
| Gender | Female |
| Bent Tube Angle | 90 |
| Swivel | Yes |
| Coupling Description | MegaCrimp Female DIN 24 Cone Swivel - Heavy Series w/ O-Ring - 90 Bent Tube |
| Industrial Description | 4G-10FDHORX90 |
| Thread Size | M18X1.5 |
| Inside Diameter | .25 IN |
| Inside Diameter | 6.4 MM |
| Drop Length | 36.5 MM |
| Cut-Off Length | 34 MM |
| Length | 54.5 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| UPC | 00072053438178 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
