GATES part description

Product Description

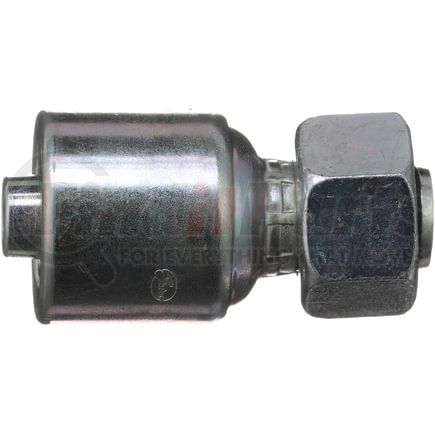

Female DIN 24 Cone Swivel - Light Series with O-Ring (MegaCrimp)

Features & Benefits

  • Robust "bite-the-wire" crimp
  • Robust “bite-the-wire” crimp
  • Tested to an industry-leading 1 million impulse cycles
  • Simplifies inventory management
  • Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
  • Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard

Product Attributes

Coupling Description MegaCrimp Female DIN 24 Cone Swivel - Light Series w/ O-Ring
Industrial Description 12G-22FDLORX
Thread Size M30X2.0
Inside Diameter .75 IN
9952 Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
Outside Diameter 22 MM
9923 36 MM
9929 1.28 IN
Length 2.79 IN
Seal Type Mated Angle w/O-Ring
Termination DIN
9927 On Female w/Inverted Nose Seat
Seat Angle 24
DIN Series Light
Gender Female
9934 Straight
Swivel Yes
Inside Diameter 19.1 MM
9929 32.5 MM
Length 70.8 MM

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 7326908688
UPC 00072053206098
VMRS Code 059032012
UNSPSC 31163000
