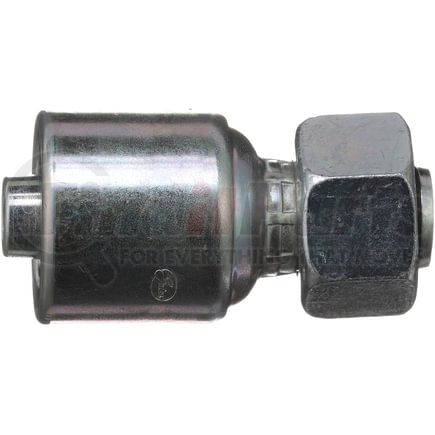

(888) 312-8812 Login SignupGATES G25645-0815 Female DIN 24 Cone Swivel - Light Series with O-Ring (MegaCrimp)
Tap to view 3 more
$2749
Limited availability at this price!
In Stock
Get it by Friday, Aug 14
GATES G25645-0815 Part Description
Manufacturer
Product Description
Female DIN 24 Cone Swivel - Light Series with O-Ring (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25645-0815 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female DIN 24 Cone Swivel - Light Series w/ O-Ring |
| Industrial Description | 8G-15FDLORX |
| Thread Size | M22X1.5 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Outside Diameter | 15 MM |
| Nut Hex Size | 27 MM |
| Cut-Off Length | 1.02 IN |
| Length | 2.43 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | DIN |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 24 |
| DIN Series | Light |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Inside Diameter | 12.7 MM |
| Cut-Off Length | 26 MM |
| Length | 61.8 MM |
Additional Information
| Country of Origin (Primary) | CZ |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053401417 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25645-0815 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1A12DL8, 1B12DL8 |
| Caterpillar | 124-2207, 124-2236, 3E-4018 |
| Dayco | HY08-15RU22A |
| Goodyear | 13240-0822, 14240-0822, B2-DLFX-0822, UC-DLFX-0822 |
| Kurt Hydraulics | F-DINLX-08-22 |
| N/A | 925007351, E08-22FML, M21512-08-22, M21513-08-22 |
| NAPA | G25645-0815 |
| Parker | 1C343-15-08, 1C343-15-8, 1CA43-15-08, 1CA43-15-8 |
| Weatherhead | 08U15C, 08Z15C, 08U-15C, 08Z-15C |
