(888) 312-8812 Login SignupGATES 70657 LOL Plus Lock-On Hose
Tap to view 1 more
MSRP: $1,042.42
$315
Save $1,039.27
Limited availability at this price!
In Stock
Get it by Tuesday, Jul 21
GATES 70657 Part Description
Manufacturer
Product Description

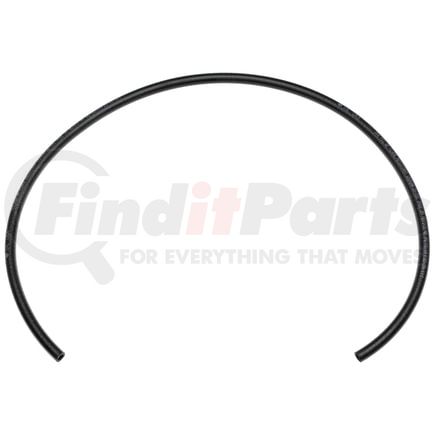

LOL Plus Lock-On Hose
Features & Benefits
- For use with Field Attachable LOC Couplings [G36 Series], GLX Couplings [G44 Series] and G37 single bead and G38 barbed fittings with clamp
- Available in 6 colors for easy color coding; black Polychloroprene (LOLA), blue (LOLB), green (LOLG), red (LOLR), yellow (LOLY) and gray (LOLC)
- Black cover only meets Flame Resistance Acceptance Designation MSHA 2G
- Temperatures Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C); Air: to +160 Deg. F (+71 Deg. C)
GATES 70657 Specifications
Product Attributes
| Length | 475 FT |
| Dash Size | 4 |
| Inside Diameter | .25 IN |
| Outside Diameter | .47 IN |
| Bend Radius | 3 IN |
| Vacuum Rating | 28 INHG |
| Tube Description | Black, Highly Heat & Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | One Fiber Braid |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 |
| Cover Type | Type C2 - Flame, Oil & Abrasion Resistant |
| Cover Color | Black |
| Coupling Recommendation | Field Attachable LOC, GLP |
| SAE Standard | N/A |
| EN Standard | N/A |
| ISO Standard | N/A |
| Product Type | LOL Plus Lock-On Hose |
| Industrial Description | 4LOLAXREEL |
| Type | Hydraulic Hose |
| Hose Pressure Description | Low Pressure |
| Maximum Working Pressure | 300 PS |
| Burst Pressure | 1200 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F, to +160 Deg. F (Air) |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Stock Status | S |
| UPC | 00072053130195 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 70657 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 2575-4RL |
| Dayco | 011954, 11954 |
| Goodyear | IGBLK04X500, UGBLK04X500 |
| N/A | 04030338 |
| NAPA | 70657 |
| Parker | 801-4-BLK-BX, 801-4-BLK-RL, 831-4, 831-4-RL, B704, 801-4 |
| Weatherhead | H10104-500R, H10104250R, H10104500R, H20104, H20104500R, H20104BK250R, H20104BK500R, H20104BK-250R, H20104BK-500R, H10104-250R, H20104-500R |
