GATES 70595 Part Description
Manufacturer
Product Description

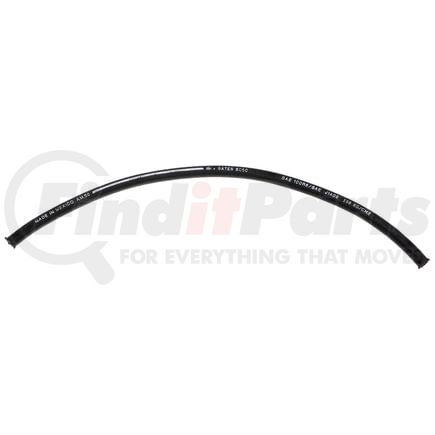

C5C Hydraulic Hose - SAE 100R5
Features & Benefits
- For use with C5 and C5X Field Attachable Couplings [G34 Series]
- Meets or exceeds requirements of SAE 100R5 for traditional hydraulic applications, DOT FMVSS 106-74 TypeAII and SAE J1402 Type AII for air brake applications (-4 to -12)
- Meets or exceeds requirements of SAE 100R5 for traditional hydraulic applications, DOT FMVSS 106–74 TypeAII and SAE J1402 Type AII for air brake applications (-4 to -12)
- Avoid continuous use at maximum temperature concurrent with maximum working pressures
- Temperature Range: Hydraulic Conditions: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C); All-purpose Fleet Application (Hot Lube Oil Lines) -40 Deg. F to +300 Deg. F (-40 Deg. C to +149 Deg. C)
GATES 70595 Specifications
Product Attributes
| Product Type | C5C Hydraulic Hose - SAE 100R5 |
| Industrial Description | 16C5CXREEL |
| Type | Fleet Application & Maintenance Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 800 PS |
| Burst Pressure | 3200 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (Hydraulic); -40 Deg. F to +300 Deg. F (Hot Oil Lines); +160 Deg. F (Air) |
| Length | 165 FT |
| Dash Size | 16 |
| Inside Diameter | .875 IN |
| Outside Diameter | 1.23 IN |
| Bend Radius | 7.4 IN |
| Tube Description | Black, Oil & Heat Resistant Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | One Braid of High-Tensile Carbon Steel Wire Over One Braid of Polyester |
| Cover Material | Polyester Braid |
| Cover Type | Oil & Mildew Resistant |
| Cover Color | Black |
| Coupling Recommendation | C5 Field Attachable |
| SAE Standard | 100R5 |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| Country of Origin (Primary) | MX |
| UPC | 00072053227932 |
| VMRS Code | 059032029 |
| UNSPSC | 40142000 |
GATES 70595 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1503-16, 1503-16RL, 2651-16, 2651-16RL |
| Dayco | 010866, 10866 |
| Goodyear | GR5-16X250, GR5-16X250RL |
| NAPA | 70595 |
| Parker | 201-16, 201-16-BX, 201-16-RL |
| Weatherhead | H06916250R |
