GATES 32016 Part Description
Manufacturer
Product Description

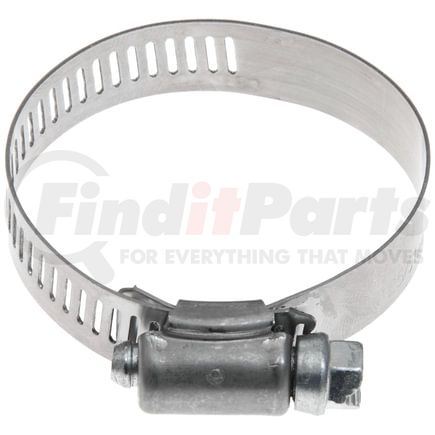

Stainless Steel Hose Clamp
Features & Benefits
- Durable 200 series stainless steel band and screw housing
- One-piece screw housing is interlocked onto band for extra strength
- Cadmium-plated solid head forged from one piece of steel
- Hex-shaped screw has a deep slot that tightens with a screwdriver, nut driver or socket wrench
- NOTE: Tighten Minex clamps to minimum 14-16 in. lb. (maximum of 20 in. lb.)
- NOTE: Super Hex clamps to minimum 25-35 in. lb. (maximum of 50 in. lb.)
GATES 32016 Specifications
Product Attributes
| Adjustment Type | Stainless Steel (Standard) |
| Hose Clamp Size | 16 |
| Hose Minimum Inside Diameter | .75 IN |
| Hose Maximum Inside Diameter | 1 IN |
| Minimum Clamping Length | .75 IN |
| Maximum Clamping Length | 1.5 IN |
| Band Width | .5 IN |
| Screw Type | Deep Slot Hex-Head |
| Recommended Torque | 25-35 PPI |
| Maximum Torque | 50 IA |
| Material | Stainless Steel |
| Housing Material | Stainless Steel |
| Band Width | 13 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053021646 |
| VMRS Code | 053008020 |
| UNSPSC | 31162900 |
GATES 32016 Part Interchanges
| Brand | Part Number |
|---|---|
| Interstate | 2016 |
| Norton | 013-16 |
| Stant | SC16 |
| Velvac | 022316 |
| ACDelco | 32016C |
| Dayco | 91016, KH16 |
| Carquest | 1016 |
| Robertshaw | 2016 |
| Aero-Seal | 10016, M16S |
| Amgauge | B16H |
| Sterling | H116 |
| New Holland | 514920 |
| Goodyear | 51016 |
| Ideal Tridon | 5716190, 670040016, 670040016051 |
| Ideal Hy-Gear | 5016, 5216, 5416, 6416 |
| NAPA | 505-1014, 705-1014, 705-1074 |
| Sure-Tite | 16, 16H, C16P |
| NAPA Belts/Hose | 32016 |
GATES 32016 Cross References
