GATES CORPORATION 24440 - Radiator Coolant Hose - Green Stripe 4-Ply Straight
- Part Number
- 24440
- Manufacturer
- GATES CORPORATION
- Description
-
Radiator Coolant Hose - Green Stripe 4-Ply Straight
details
$9501
MSRP: $100.97
Save: $5.96
In stock
limited availability at this price!
GATES CORPORATION part description
Product Description

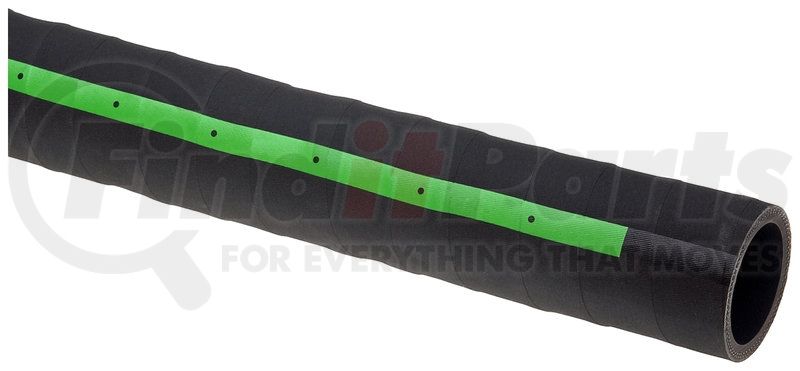

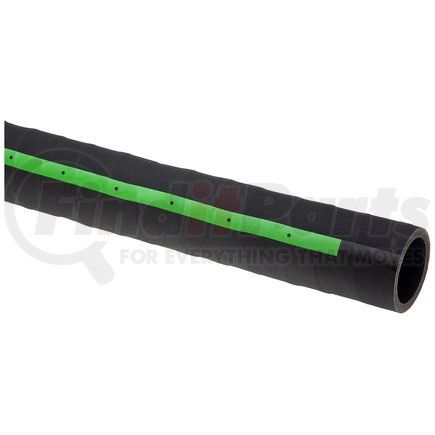

Green Stripe 4-Ply Straight Coolant Hose
Application Summary
2011-09 International/Navistar, ProStar Series, Cummins ISX Diesel, Upper - Pipe To Pipe
Features & Benefits
- Engineered with compounds to resist electrochemical degradation - the leading cause of hose failure
- Nitrile tube specially compounded to handle common coolants and additives
- Four-ply woven, heavy-duty fabric reinforcement
- Neoprene cover resists heat, abrasion and oil
- Exceeds SAE 20R1 (Class B Tube, Class C Cover, Heavy Wall)
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) continuous; up to +257 Deg. F (+125 Deg. C) intermittent
- Caution: Do not use for gasoline or diesel transfer applications
Product Attributes
| Material | EPDM |
| Construction | 4-Ply |
| End 1 Inside Diameter | 2.5 in |
| End 2 Inside Diameter | 2.5 in |
| 2035 | 3 FT |
| 2053 | 75 PS |
| 9839 | No |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00072053298093 |
| VMRS Code | 042004050 |
| UNSPSC | 40142000 |
Part Interchanges
- Dayco 71757
- Dayco D71757
- Carquest 24440
- Case S120031
- Caterpillar 5P1262
- Ford F1HT 8260 ADA
- Ford F1HT 8260 AEA
- Ford F1HZ 8260 R
- Ford F4HZ 8260 A
- Ford F4HZ 8260 B
- Ford F2HZ 8260 L
- International Harvester (IHC) 503232C1
- International Harvester (IHC) 571608C1
- International Harvester (IHC) 571784C1
- International Harvester (IHC) 792616C1
- International Harvester (IHC) L57240
- Oshkosh 12160FX
- Oshkosh 12160FX1
- Oshkosh 3665598
- Mack 534222
- Mack 535512
- Freightliner 0527689000
- Freightliner 0529916000
- Goodyear 57040
- NAPA Belts/Hose 668
- Alliance Truck Parts GT/4175SC250
- Alliance Truck Parts GTF71068SB
GATES CORPORATION 24440 Cross Reference
We have 1 alternatives for the 24440 by GATES CORPORATION:
Fits Vehicles
- International 9400i SBA (2007)
- International 2674 (2001)
- International WorkStar 7300 (2015)
- Freightliner FLD132 (2009)
- Freightliner M2 106 (2016)
- International HX615 (2017)
- International HX515 (2017)
- International 9900i (2010, 2013-2018)
- International 7600 (2011, 2013, 2015)
- International LoneStar (2014-2017, 2019-2021)
- Freightliner M2 112 (2016)
- International 8600 TranStar (2014-2015)
- Freightliner FLD120SD (2009)
- International 7400 (2010, 2013, 2016)
- International 7300 (2012, 2015)
- Western Star 4900EX (2008-2009, 2012)
- Western Star 4900FA (2003, 2008, 2010-2013)
- Western Star 4900SA (2002-2003, 2009)
- Kenworth T660 (2009-2011)
- Kenworth W900 (2009)
- Kenworth T800 (2009-2010)
- Freightliner Classic (2008)
- Freightliner Cascadia (2010-2018)
- Freightliner 114SD (2012-2016)
- Freightliner 108SD (2012-2014, 2017-2019)
- Freightliner Columbia (2002-2003)
- International WorkStar 7700 (2008-2009)
- International 5500i (2008-2009, 2011-2012)
- International ProStar (2008-2013)
- International WorkStar 7600 (2009-2011, 2013)
- International 5600i (2009-2011)
- International 9200i SBA (2008-2011)
- Sterling Truck L9500 (2009)
- Oshkosh Motor Truck Co. S (2004-2011)
