Engine Coolant Hose

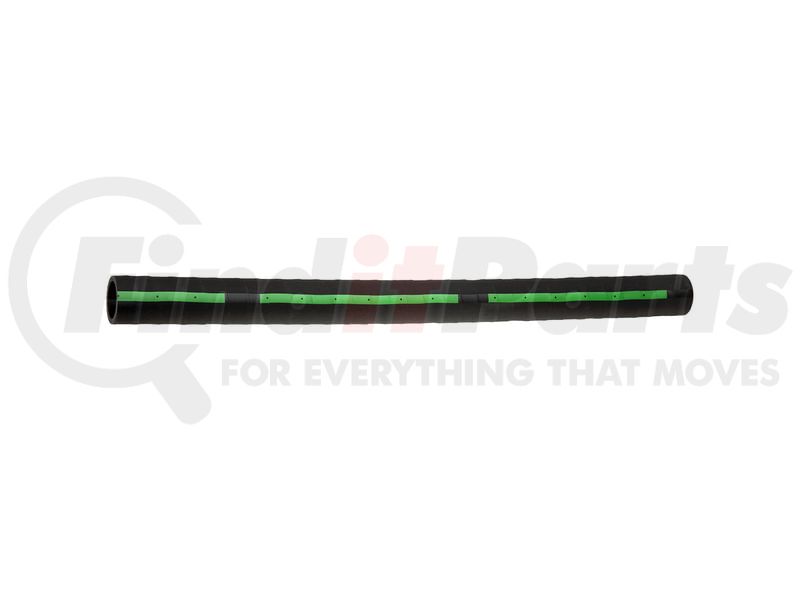

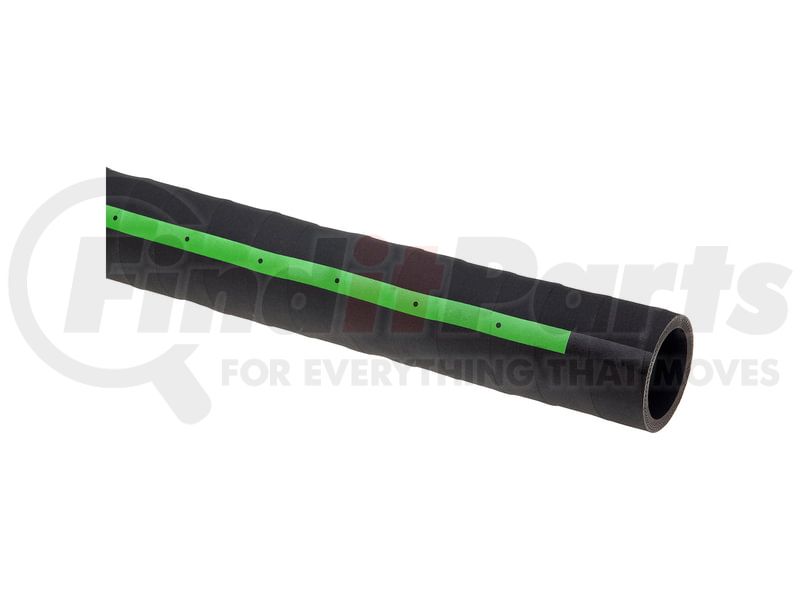

GATES 24428 3 ft. Coolant Hose, 100 psi Max WP, 1-3/4 in. x 1-3/4 in. ID, EPDM Material

GATES 24428 3 ft. Coolant Hose, 100 psi Max WP, 1-3/4 in. x 1-3/4 in. ID, EPDM Material

Name: Gates 24428 3 ft. Coolant Hose, 100 psi Max WP, 1-3/4 in. x 1-3/4 in. ID, EPDM Material
SKU: 24428
Price: 71.63 USD
Availability: OutOfStock

★★★★★ (0)

Gates 24428 Engine Coolant Hose 3 ft. Coolant Hose, 100 psi Max WP, 1-3/4 in. x 1-3/4 in. ID, EPDM Material

Tap to view 1 more

$71.63

MSRP Pricing shown.

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

GATES 24428 Part Description

Manufacturer

GATES

Product Description

Green Stripe 4-Ply Straight Coolant Hose

Application Summary

2013 Freightliner, Cascadia, Detroit Diesel Series 60 Diesel (Non-US), By Pass - W.P. To Thermostat

Features & Benefits

Engineered with compounds to resist electrochemical degradation - the leading cause of hose failure
Engineered with compounds to resist electrochemical degradation – the leading cause of hose failure
Nitrile tube specially compounded to handle common coolants and additives
Four-ply woven, heavy-duty fabric reinforcement
Neoprene cover resists heat, abrasion and oil
Exceeds SAE 20R1 (Class B Tube, Class C Cover, Heavy Wall)
Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) continuous; up to +257 Deg. F (+125 Deg. C) intermittent
Temperature Range: –40 Deg. F to +212 Deg. F (–40 Deg. C to +100 Deg. C) continuous; up to +257 Deg. F (+125 Deg. C) intermittent
Caution: Do not use for gasoline or diesel transfer applications

GATES 24428 Specifications

Product Attributes

Centerline Length	3 FT
End 1 Inside Diameter	1.75 in
End 2 Inside Diameter	1.75 in
Working Pressure	100 PS
Construction	4-Ply
Material	EPDM
Molded	No
Centerline Length	.91 LM
Centerline Length	36 IN
Centerline Length	914 MM
End 1 Inside Diameter	44 MM
End 2 Inside Diameter	44 MM

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	4009310000
Stock Status	N
UPC	00072053304664
VMRS Code	042004050
UNSPSC	40142000

GATES 24428 Cross References

Brand	Part Number
	41791660
Alliance Truck Parts	GT/4175SC175
CONTINENTAL AG	57028
Carquest	24428
Case Tractor	G46269, VT4948
DAYCO	77175GL
Detroit Diesel	08929875
FAIRCHILD	MCH1573
Goodyear	57028
NAPA Belts/Hose	662
