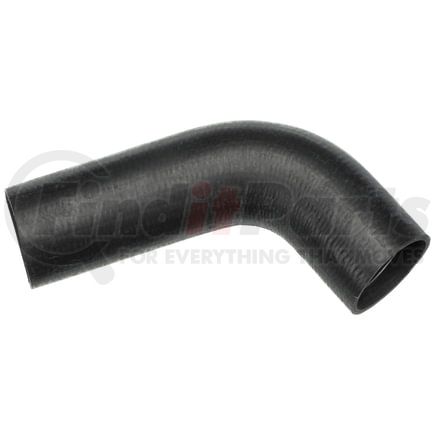

Gates 20760 - Premium Molded Coolant Hose
$3749
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Premium Molded Coolant Hose
Application Summary
2016 International/Navistar, ProStar Series, International/Navistar N13 Diesel, Lower - Pipe To Eng.
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
Product Attributes
| Centerline Length | 12.1 IN |
| Modular | No |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 2.5 in |
| End 2 Inside Diameter | 2.5 in |
| Contains Spring | Yes |
| Material | EPDM |
| Molded | Yes |
| Centerline Length | 307 MM |
| End 1 Inside Diameter | 64 MM |
| End 2 Inside Diameter | 64 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00072053052817 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
Part Interchanges
- Mopar H0060820
- Motorcraft KM-701
- Motorcraft KMS-1103
- White 027131942
- ACDelco 20061S
- Dayco 70771
- Dayco D70771
- Kohler 255582
- Carquest 20760
- Allis Chalmers A59864
- Case Tractor A60169
- Case Tractor F17765
- Case Tractor L46256
- Caterpillar 1261861
- Caterpillar 3R1317
- Chrysler 2557483
- Chrysler 2952006
- Chrysler 2955008
- General Motors 2490346
- General Motors 2490108
- General Motors 2490354
- Ford D9HZ 8286 N
- Volvo Cars 13368139
- International Harvester (IHC) 480943C1
- International Harvester (IHC) 480944C91
- Massey Ferguson 184787M1
- Goodyear 60820
- NAPA Belts/Hose 7522
- Durkee-Atwood MR211
- Motion 375Z54001
- <Unknown> R17765
- Duralast F10080
Fits Vehicles
- International ProStar (2016)
- International 2674 (1992-1993)
- International 2574 (1992-1993)
- International S2524 (1980)
