TRUCK-LITE part description

Product Description

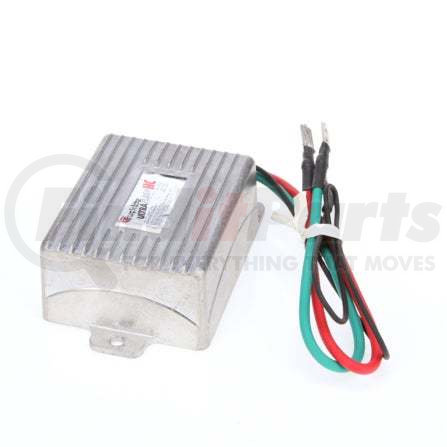

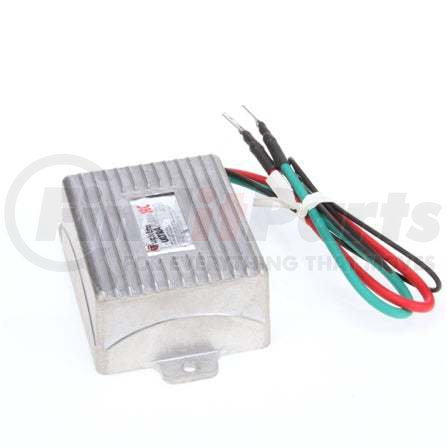

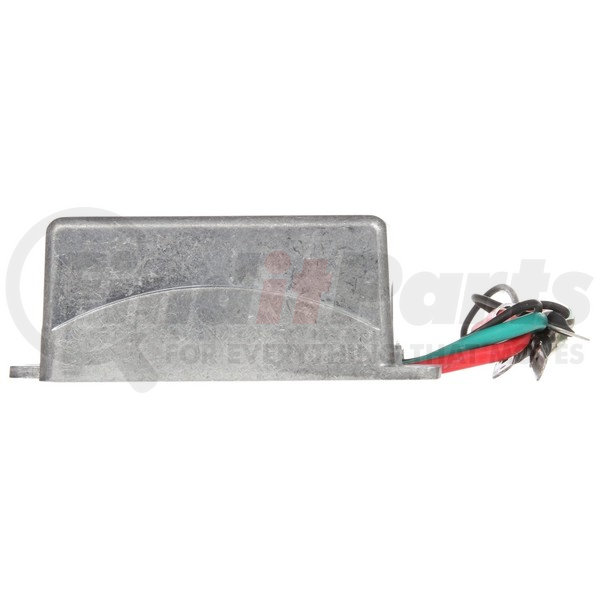

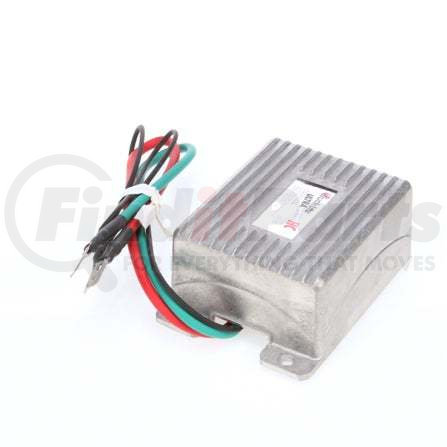

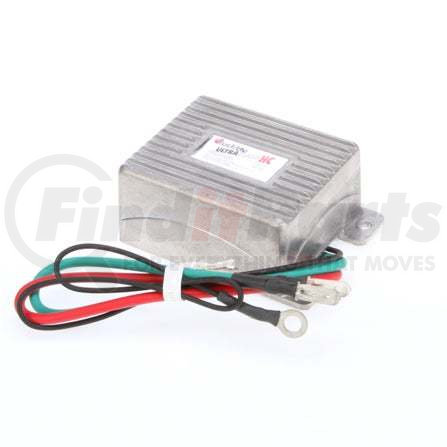

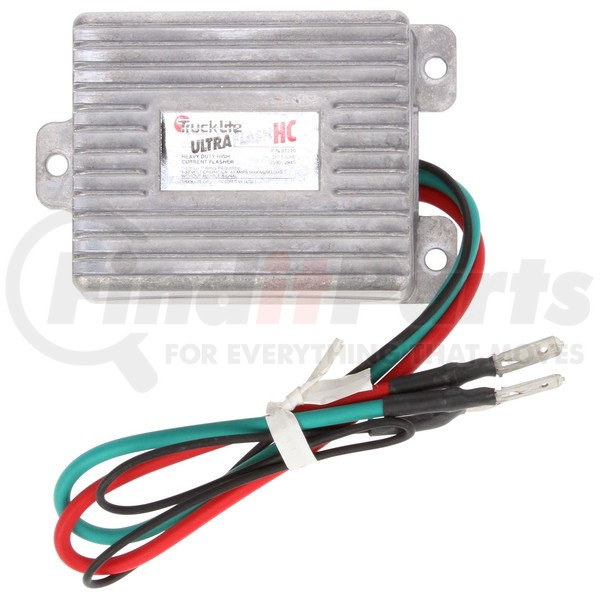

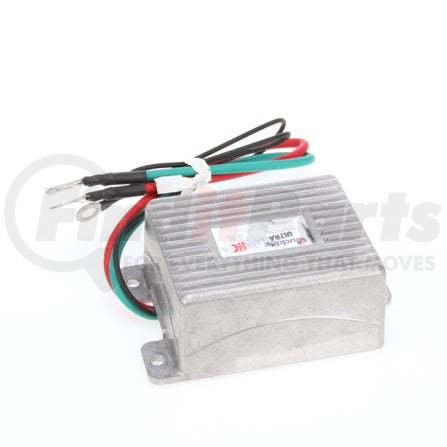

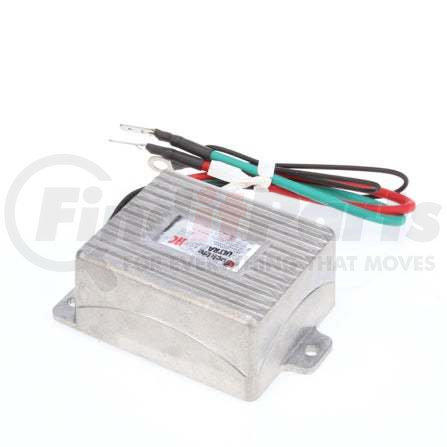

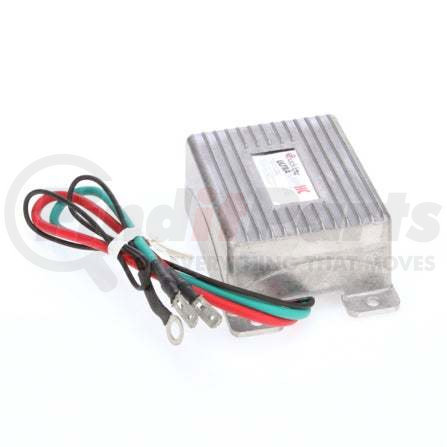

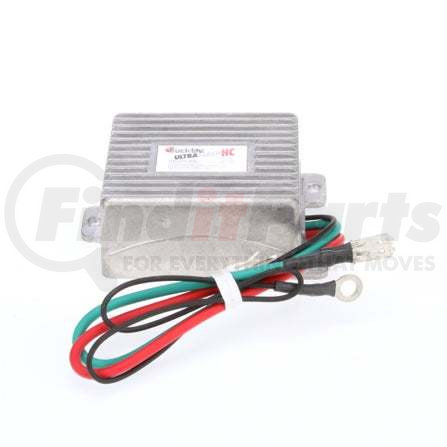

20 Light High Current Heavy-Duty Solid-State, 90fpm, Flasher Module, 12-24V

Features & Benefits

  • ULTRA FLASH II High Current

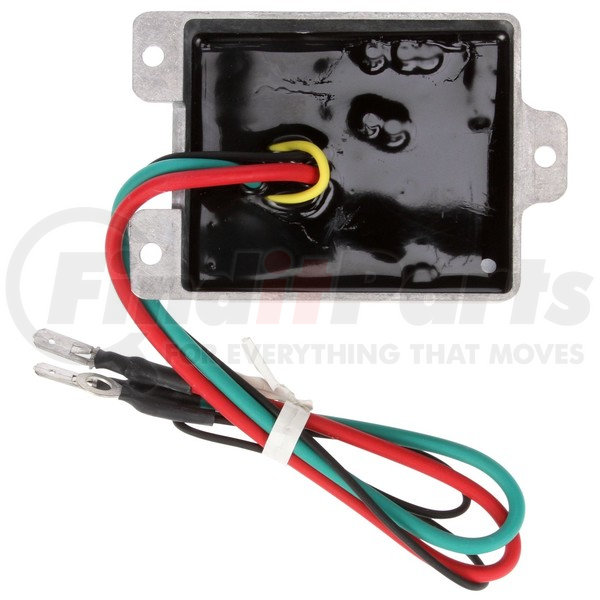

  • Solid-state electronics are totally encapsulated in polyurethane for moisture and corrosion protection
  • Designed to protect against short circuit overloads with a self-resetting feature
  • 97270 and 97271 rated for loads below 40 amps at 128v (20,32 cp) or below 20 amps at 256v
  • 97272 rated for loads below 25 amps at 128v per channel or below 125 amps at 256v per channel
  • Designed to work with 12V or 24V electrical systems and operated from 9v to 32v

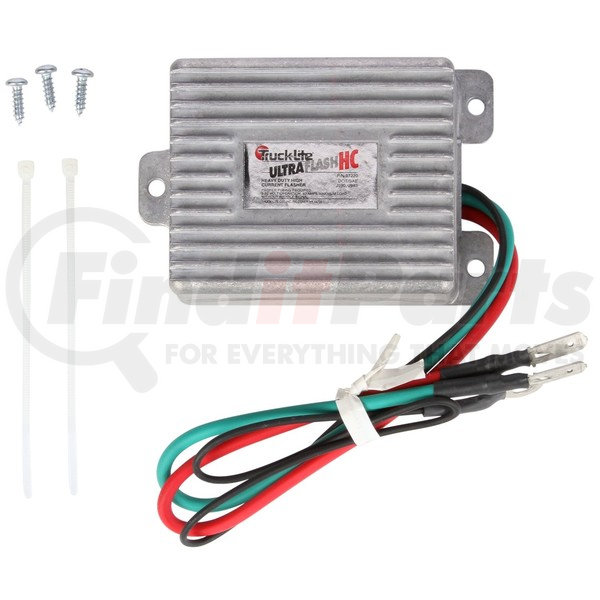

  • 97270 and 97271 feature 12'' leads with two 1/4'' spade terminals and one 1/4'' ring with heat shrink tubing
  • 97272 features 12'' leads with three 1/4'' spade terminals and one 1/4" ring with heat sink tubing
  • Used for both LED or incandescent lamps
  • Do not expose to moisture or liquid

Product Attributes

Housing Material Aluminum
Lamp Connection Hardwired
Standards Met J590, J945, J1054
Trim Color Silver
Trim Material Aluminum
Voltage 12, 24
Truck-Lite® is a world-renowned manufacturer of mirrors, heavy-duty forward and signal lighting, trailer harnesses, and other safety and visibility-enhancing products. Its main headquarters is located in Falconer, NY, and it maintains ten more facilities across North America and Europe. The company may have started small as a sealed lighting manufacturer in 1955. But it has grown tremendously over the years—in fact, it introduced a series of firsts including the first sealed lighting products, first LED S/T/T lamps, and first forward lighting. Being first in product development has sure paved the way for Truck-Lite to become a successful business today.
