TRUCK-LITE part description

Product Description

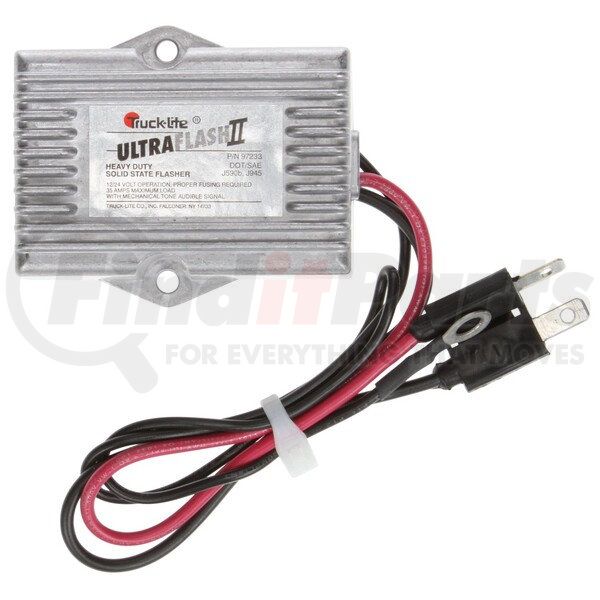

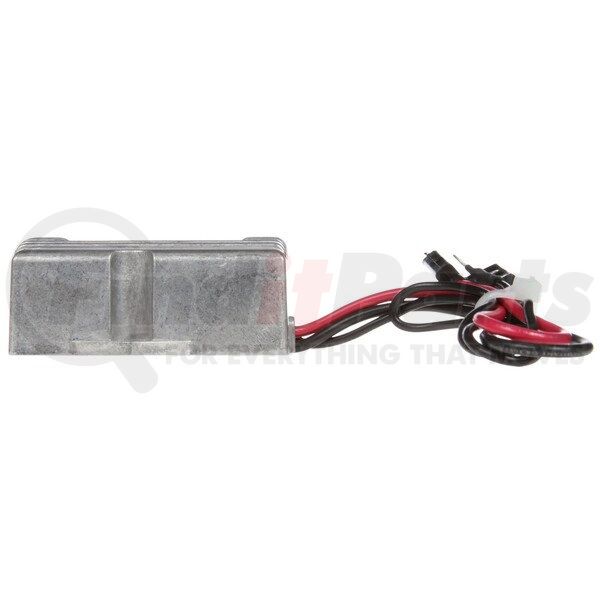

Heavy-Duty Solid-State, 90fpm, Audible, Flasher Module, 12-24V

Features & Benefits

  • ULTRA FLASH II

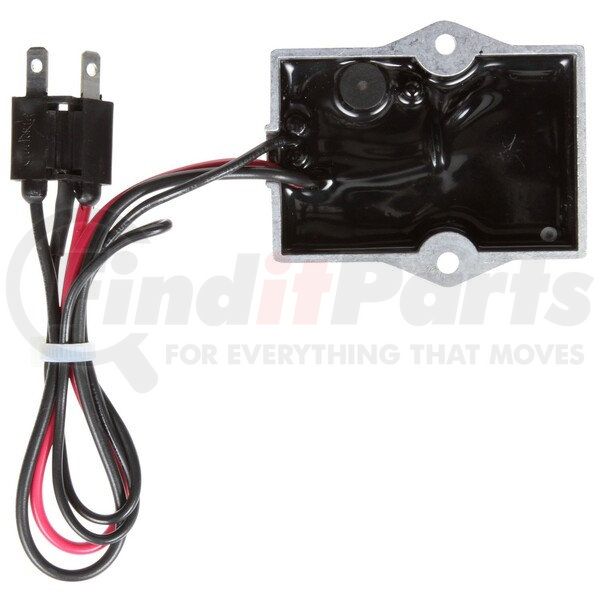

  • Solid-state electronics are sealed in polyurethane for moisture and corrosion protection

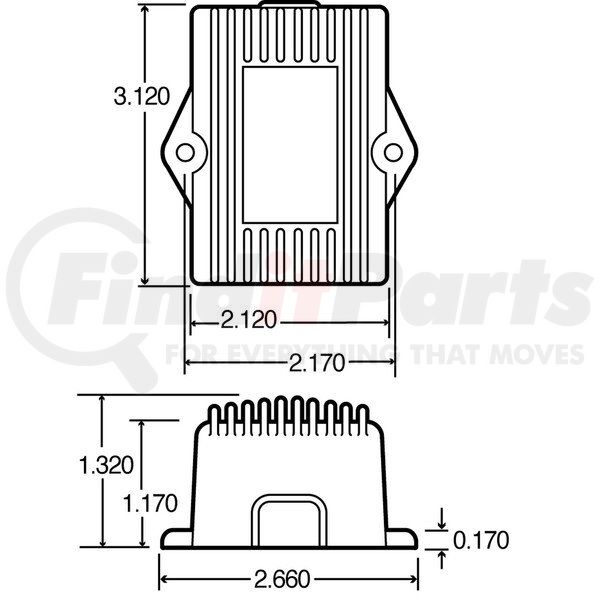

  • Surface mounts with two 1/2"-6 pan head screws at 212" centers or with two 4" cable ties (both included)
  • Protects against short circuit overloads with a self-resetting feature
  • Works with LED or incandescent lamps on 12V or 24V electrical systems
  • 97231, 97232 and 97233 rated for loads below 25 amps or 12,-32 cp bulbs
  • 97201 rated for loads below 17 amps per channel or 8-32/3 cp bulbs
  • Optional remote wiring requires 12" jumper wire, 94954
  • 97231, 97232 and 97333 feature folding bi-polar plug with 11" leads for reverse polarity operation
  • 97201 features three 1/4" tabs and one 1/4" ring with heat shrink tubing and 12" leads
  • 97201 used for wig/wag system
  • For interior/cab use only
  • Do not expose to moisture or liquid

Product Attributes

Flasher Ampere Capacity FMVSS 108, SAE
Housing Material Aluminum
Kit No
Lamp Connection Hardwired
Mount Type 2 Screw
Nsn FMVSS 108, SAE
Plug Side One Hardwired
Plug Side Two Bi-Polar Plug, Ring Terminal
Standards Met J590, J1054
Trim Color Silver
Trim Material Aluminum
Voltage 12, 24
Wire Quantity 3
