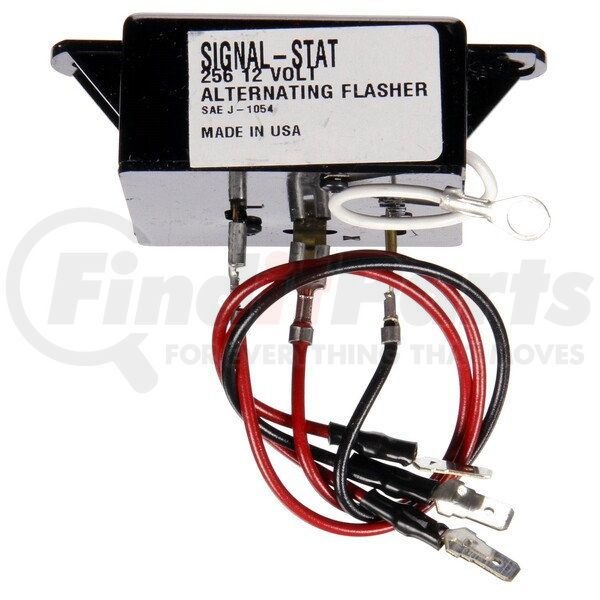

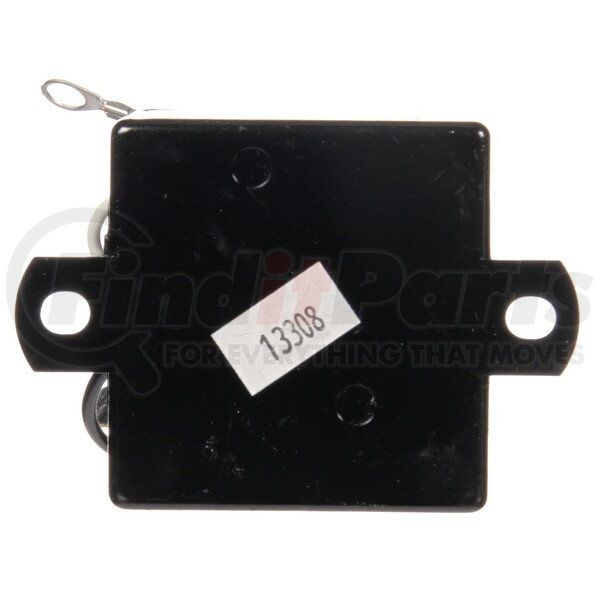

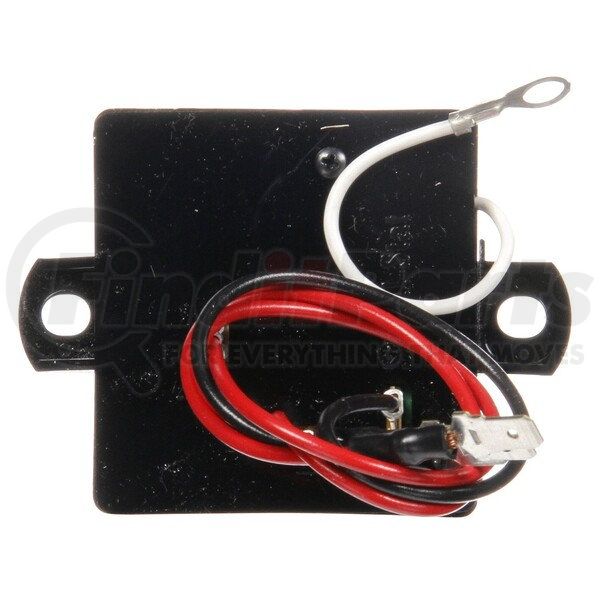

Truck-Lite 256 - Signal-Stat Flasher Module - 10 Light Electro-Mechanical, Plastic, 60-90fpm, 3 Spade Terminal/Ring Terminal, 12V
- Part Number
- 256
- Manufacturer
- TRUCK-LITE
- Description
-
Signal-Stat Flasher Module - 10 Light Electro-Mechanical, Plastic, 60-90fpm, 3 Spade Terminal/Ring Terminal, 12V
details
$18149
MSRP: $185.20
Save: $3.71
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
TRUCK-LITE part description
Product Description
10 Light Electro-Mechanical, 60-90fpm, Flasher Module, 12V
Features & Benefits
- Mack 47M019301P2 (SS# 250)
- Conforms to DOT and SAE specifications
- Test proven to exceed 15 million cycles of continuous operation at maximum capacity without failure
- Certified for ten bulb load hazard warning, five bulb load turn signal, plus pilot
- Polycarbonate housing and brass terminals for superior corrosion resistance and better conductivity
- For school buses or emergency vehicles
- Flashes two 75 watt sealed beams per circuit
Product Attributes
Flasher Ampere Capacity | FMVSS 108, DOT, SAE |
Housing Material | Plastic |
Kit | No |
Lamp Connection | Hardwired |
Mount Type | 2 Screw |
Nsn | FMVSS 108, DOT, SAE |
Plug Side One | Hardwired |
Plug Side Two | 3 Spade Terminal, Ring Terminal |
Series | Signal-Stat |
Standards Met | J590, J945, J1054 |
Trim Color | Black |
Trim Material | Plastic |
Voltage | 12 |
Wire Quantity | 4 |
