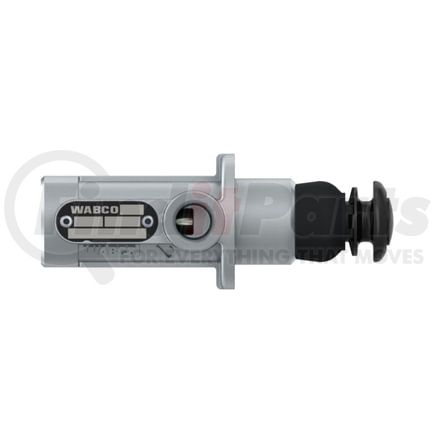

WABCO 4630131100 - Air Brake Line Three-Way Pilot Valve - No Locking Function, MX12 x 1.5
$12149
14 day lead time
Pay over 3-12 months with
. Learn more
. Learn more
WABCO part description
Three Way Valve
Product Attributes
| Calculated Volume (dm³) | 0.1638 |
| Size | 104 x 45 x 35 |
| Type | 3/2 |
| Nominal Diameter | 4.0 mm |
| Max. operating pressure | 145.0 psi |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Weight | 0.44533 |
| Temperature Range | -40°C to +80°C |
| Actuation | Push |
| Actuating Range | 5.7 mm |
| Port thread 3 | M12 x 1.5 |
| Handle Length | 46.9 mm |
| Exhaust | M12 x 1.5 |
| Stroke | 5.7 mm |
| Mounting | M26 x 1.5 |
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
