HALDEX part description

Product Description

Shock, Peterbilt 357 Drive Axle Rear, Extd Lngth. 24", Comp Lngth. 15"

Application Summary

Gas-Charged shock for class 3 to 8 vehicles.

Features & Benefits

  • A highly reliable nitrogen gas-charged shock with a multi-lip fluid seal
  • Made using premium-quality materials to ensure efficient performance even during harsh operating conditions
  • Manufactured using state-of-the-art technology to meet or exceed the highest levels of quality
  • Built to last as long as your truck while reducing downtime, increasing tire mileage, and increasing resale value
  • Specifically designed for use on Class 3 to 8 vehicles

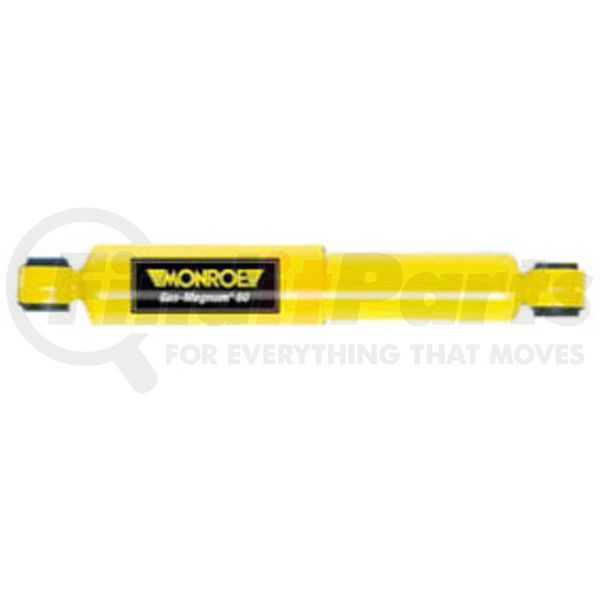

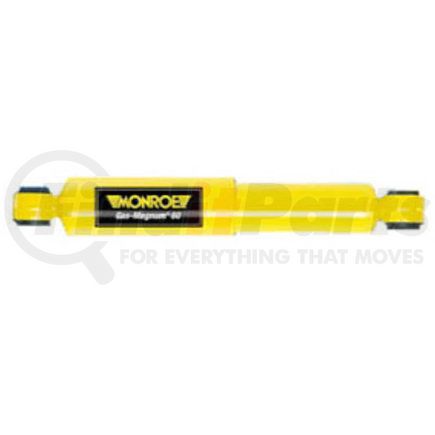

Haldex Midland Gas-Magnum® 60 Shock Absorber

Enjoy reduced vibration when driving with the Haldex Midland Gas-Magnum® 60 shock absorber. A part of the Monroe® shock absorber line, this product is engineered to the highest quality standards for improved performance and efficiency.

Product Attributes

Compressed Length 14.98 in.
Travel Length 9.01 in.
Dust Shield Yes
Extended Length 23.99 in.
Dust Shield Material Metal
Compressed Bumper Stop No
Extended Bumper Stop No
Extended Hydraulic Lockout Yes
Location Rear

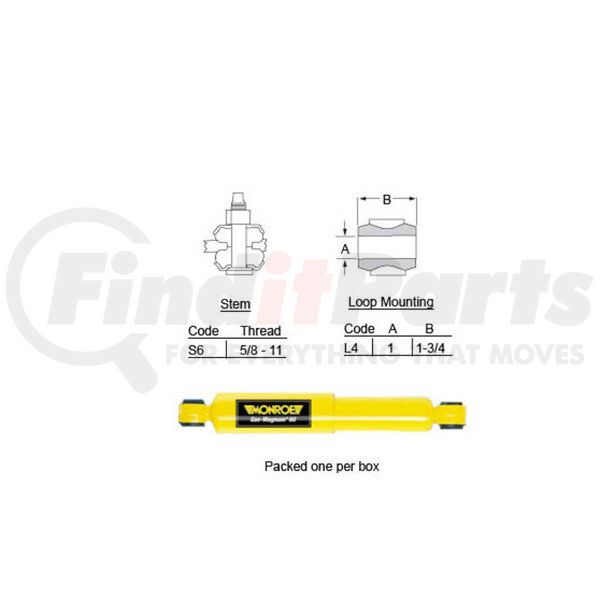

Lower Mounting Code L4
Lower Mounting Description Loop Bushing Mount1" Bushing ID X 1.3/4" Bushing OAL
Quantity Sold Sold Individually
Series Magnum
Upper Mounting Code S6
Upper Mounting Description Stem Mount3.5/16" Stem Length X 5/8"-11 Thread Pitch

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8716905060
Harmonized Tariff Code (HTS) 8716905060
Remanufactured Part N
Warranty Distance 100000
Warranty Distance UOM MI
Warranty Special 24 MO, 200,000 MI=Air Compressors EL850(4), EL1300(5), EL1600(5), Tu-Flo 501/550(4), Tu-Flo 700/750(4), 12 MO, 100,000 MI=All Other REMAN Products Not Listed(13). See L20221W.pdf for warranty details
Warranty Time 12
Warranty Time UOM MO
UPC 00767653345796
VMRS Code 016008003

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.

HALDEX SA66429 Cross Reference

We have 2 alternatives for the SA66429 by HALDEX:
