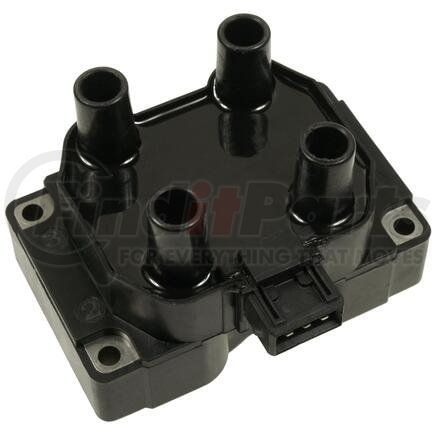

STANDARD IGNITION UF-306 Part Description
Manufacturer
Product Description
Distributorless Coil
Features & Benefits
- Our ignition coils use 100% pure copper windings in the primary and secondary bobbins to improve durability and provide higher resistance to internal shorts and dielectric breakdown
- Our premium ignition coils consist of a special blended formula for the best performance, longest life and better heat dissipation
- A full E-Lam core of silicon steel and solid brass high voltage terminals protects against corrosion. Our ignition coils are built for maximum output voltage
- Primary and Secondary windings feature enamel magnet wire for the highest temperature rating in the aftermarket
- As a tier I manufacturer with engineering and design capabilities second to none, our ignition coils are made to the highest quality standards
- As a global manufacturer of original equipment ignition products, we maintain complete quality control throughout the manufacturing process from componentry to finished product
STANDARD IGNITION UF-306 Specifications
Product Attributes
| Voltage | 12 |
| Color | Black |
| Mounting Position | External |
| Ignition Type | Distributorless |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Connector Quantity | 1 |
| Mount Type | Bolt On |
| Terminal Quantity | 3 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Mounting Bracket Included | Yes |
| Contents | Ignition Coil |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8511300080 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00091769558147 |
STANDARD IGNITION UF-306 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 178-8327 |
| Delphi | GN10295 |
| Echlin | IC200 |
| Kem | 351F |
| Spectra Premium | C-673 |
| ACDelco | 88921372, E502C |
| Motorad | 2IC379 |
| Autopart International | 2505-512981 |
| BWD | E646 |
| Duralast | C1147 |
| General Motors | 88921372 |
| VEMO | V24-70-0006 |
| Kia | 0K01118100 |
| Jaguar | ERR6045 |
| Airtex | 5C1187, 5C1259 |
| Auto 7 | 023-0066 |
| Import Direct | 23-0354 |
| BWD Intermotor | E646 |
| CARQUEST Premium By WELLS | 52-1575 |
| Cartek | 5157 |
| HOLSTEIN | 2IGC0062 |
| Import Direct Ignition | 23-0354 |
| Carquest Premium Vehicle Solutions | EBC1704 |
| N/A | 0221503407, CUF306, 920-1069 |
STANDARD IGNITION UF-306 Fits Vehicles
- Kia Sportage (1995)
