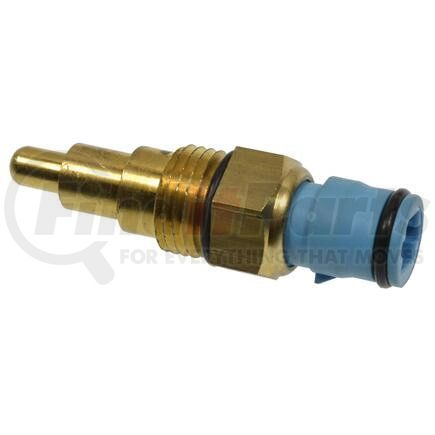

Standard Ignition TS-106 - Coolant Fan Switch
- Part Number
- TS-106
- Manufacturer
- STANDARD IGNITION
- Description
-
Coolant Fan Switch
details
$4249
MSRP: $61.08
Save: $18.59
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
STANDARD IGNITION part description
Product Description
Coolant Fan Switch
Features & Benefits
- Robust design and high grade materials meet the stringent demands of today's service professional
- In design, we specify custom wax formulations that will expand when heated, activate a snap action electrical contact and transfer the electrical signal to the fan controller
- In manufacturing, we custom form the wax pellets for different temperature range specifications. All units are calibrated and tested to confirm switch actuation at their specified temperature
- The switch is designed using a formed bimetallic contact arm. The bimetal contact movement is achieved using the different expansion rates of two metals fused together. This is a creep action device, provides precise performance
- In production, all thermal switches are factory-calibrated to make electrical contact at the specified lower-temperature set point
- As a global manufacturer of original equipment ignition products, we maintain complete quality control throughout the manufacturing process from componentry to finished product
Product Attributes
| Attachment Method | Screw-On |
| Bulb Included | No |
| Color/Finish | Gold, Blue |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Square |
| Connector Type | Plug In |
| Finish | Dichromate, Plastic |
| Hardware Included | No |
| Housing Material | Plastic, Metal |
| Mounting Bracket(s) Included | No |
| Open at Idle | Yes |
| Overall Width (MM) | 13.97 |
| Switch Actuation Style | Toggle |
| Switch Shape | Square |
| Terminal Gender | Male |
| Terminal Quantity | 1 |
| Terminal Type | Blade |
| Thread Size | 16MMX1.50 |
| Voltage | 12 |
| Width - Inches | 0.55 |
| Wire Quantity | 0 |
| Wiring Harness Included | No |
Additional Information
| Country of Origin (Primary) | ES |
| Harmonized Tariff Code (HTS) | 8536509065 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00091769031190 |
Part Interchanges
- Beck/Arnley 201-1168
- Beck/Arnley 201-1250
- CARQUEST Standard 51743
- Echlin FS176
- Four Seasons 35944
- Kem RF10
- Mighty Distributing System 6-1962
- ACDelco 12351078
- ACDelco 15-50524
- ACDelco 15-51103
- ACDelco 19021192
- ACDelco 19139237
- ACDelco 19189428
- ACDelco 212-463
- ACDelco 88923795
- ACDelco D1863D
- ACDelco E1863
- ACDelco E1883
- BWD TFS507
- Duralast 51743
- Duralast SW512
- Duralast SW652
- General Motors 12351078
- General Motors 94840250
- General Motors 94846018
- General Motors 94846019
- VEMO V70-99-0011
- Santech MT0550
- Toyota 8942815011
- Toyota 8942832010
- Airtex 1S4353
- Airtex 1S4490
- Import Direct 17-1056
- BWD Intermotor TFS507
- MTE-THOMSON 3722
- MTE-THOMSON 7422
- CARQUEST Premium By WELLS 53-13816
- CARQUEST Premium By WELLS 53-13899
- Cartek 8422
- Import Direct Ignition 17-1056
- D1863D
Fits Vehicles
- BMW 325es (1986-1987)
- Toyota Tercel (1981-1982)
- Toyota Corolla (1984-1987, 1989-1993)
- Toyota Celica (1986-1987, 1990-1992)
- Toyota Camry (1983-1986, 1988)
- Geo Prizm (1989-1992)
- Chevrolet Nova (1985-1988)
- Chevrolet Monza (1979)
