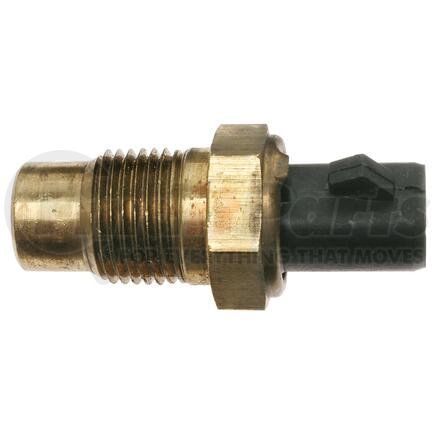

Standard Ignition TS-155 - Coolant Fan Switch
- Part Number
- TS-155
- Manufacturer
- STANDARD IGNITION
- Description
-
Coolant Fan Switch
details
$3599
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
STANDARD IGNITION part description
Product Description
Coolant Fan Switch
Features & Benefits
- Robust design and high grade materials meet the stringent demands of today's service professional
- In design, we specify custom wax formulations that will expand when heated, activate a snap action electrical contact and transfer the electrical signal to the fan controller
- In manufacturing, we custom form the wax pellets for different temperature range specifications. All units are calibrated and tested to confirm switch actuation at their specified temperature
- The switch is designed using a formed bimetallic contact arm. The bimetal contact movement is achieved using the different expansion rates of two metals fused together. This is a creep action device, provides precise performance
- In production, all thermal switches are factory-calibrated to make electrical contact at the specified lower-temperature set point
- As a global manufacturer of original equipment ignition products, we maintain complete quality control throughout the manufacturing process from componentry to finished product
Product Attributes
| Attachment Method | Plug In |
| Bulb Included | No |
| Color/Finish | Black, Gold |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Hardware Included | No |
| Housing Material | Metal |
| Mounting Bracket(s) Included | No |
| Open at Idle | Yes |
| Overall Width (MM) | 16.51 |
| Switch Actuation Style | Toggle |
| Switch Shape | Rectangular |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| Thread Size | 20MMX2.0 |
| Voltage | 12 |
| Width - Inches | 0.65 |
| Wire Quantity | 0 |
| Wiring Harness Included | No |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8536509065 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00091769031619 |
Part Interchanges
- Beck/Arnley 201-1435
- Echlin FS102
- Four Seasons 35936
- Kem RF41
- Mighty Distributing System 4-1943
- ACDelco 15-72716
- ACDelco 19189425
- BWD TFS13
- Duralast 51765
- Duralast SW532
- General Motors 19021032
- Santech MT0485
- Ford E4EF8B607AA
- Ford E4FZ8B607A
- Ford E4FZ8B607B
- Ford E5FZ8B607A
- Airtex 1S4374
- NAPA Mileage Plus FS102SB
- T Series TS155T
- MTE-THOMSON 751
- CARQUEST Premium By WELLS 53-13835
- Cartek 8466
- Carquest Premium Vehicle Solutions TFA1049
- 75-0041
Fits Vehicles
- Mercury Topaz (1984-1986)
- Mercury Cougar (1985-1986)
- Mercury Lynx (1984-1987)
- Ford Mustang (1984-1985)
- Ford Tempo (1984-1986)
- Ford Escort (1984-1990)
- Ford EXP (1984-1988)
