AIRTEX part description

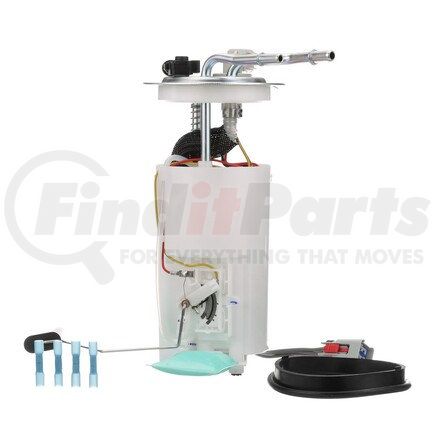

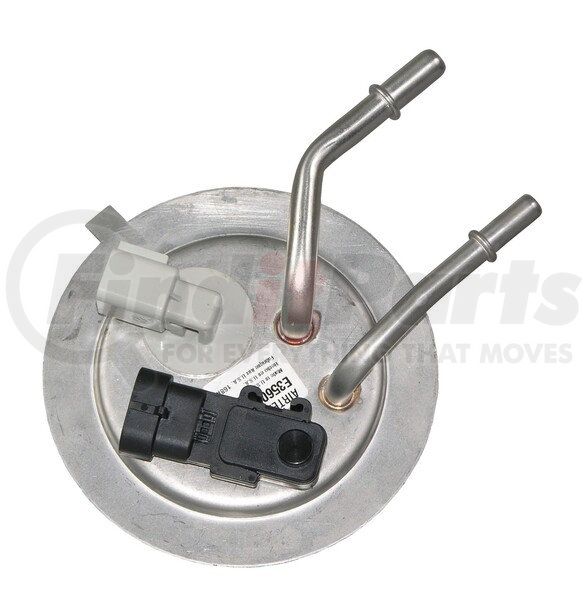

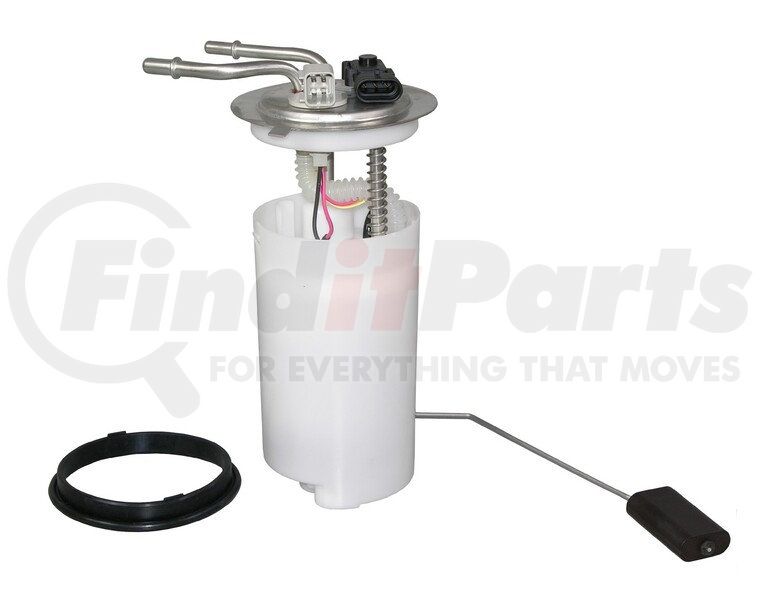

Fuel Pump Module Assy

Product Description

Fuel Pump Module Assembly

Application Summary

2002-2004 Chevrolet Suburban 1500 (Liter: 5.3 & Cylinder: 8 & Block: V & Engine VIN: Z & Fuel: FLEX); 2002-2004 GMC Yukon XL 1500 (Liter: 5.3 & Cylinder: 8 & Block: V & Engine VIN: Z & Fuel: FLEX)

Features & Benefits

  • Airtex Electric Fuel Pumps and Electric Fuel Pump Assemblies are made with all new materials under rigorous quality controlled manufacturing and testing procedures.
  • Quality Airtex in-tank fuel pumps deliver optimum performance while providing long life.

Product Attributes

Fuel Sending Unit Included Yes
Negative Ground Yes
Outlet Outside Diameter 9.49 MM
Length 230.0 MM
Wiring Harness Length 185.0 MM
Connector Color White
Regulator Included No
Terminal Type Blade
Mounting Hardware Included No
Universal Or Specific Fit Specific
Wire Quantity 4
Grade Type Regular
Connector Shape Square
Gasket Or Seal Included Yes
Housing Material POM
Terminal Quantity 4
Top Mount Diameter 115.0 MM
Lock Ring Included No
Connector Gender Female
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 1
In Tank or External In Tank
Resistance Ohms Empty 40.0 82
Resistance Ohms Full 250.0 82
Internal Or External Strainer External
Outlet Fitting Thread Size 1/4 IN
Fuel Tank Pressure Sensor Included Yes
Minimum Flow Rating 25 GPH
Pump Type Electric
California Proposition 65 No Proposition 65 warning is required with this product.
Filter Included No
Flow Rate 25 gph
Gasket Included Y
Internal or External Internal
Minimum Pressure 60.0 PSI
Pump Type Electrical
Voltage 12V
Wiring Harness Included Yes

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (HTS) 8413309030
Warranty Special Limited Lifetime Warranty
Warranty Special UOM TX
UPC 00080044012238
VMRS Code 044003258
UNSPSC 40151532

Part Interchanges

AIRTEX E3560M Cross Reference

We have 1 alternatives for the E3560M by AIRTEX:

Fits Vehicles

  • GMC Yukon XL 1500 (2002-2004)
  • Chevrolet Suburban 1500 (2002-2004)

Airtex® is a leading manufacturer and supplier of mechanical and electrical fuel pumps for the automotive industry. It has over 2,100 SKUs that cover more than 250 million vehicles in operation today, including cars, trucks, fleets, and specialty vehicles. Airtex’s mechanical pumps are engineered to provide years of leak-free operation for older-model vehicles with carburetor-style fuel-injection systems. And its electrical fuel pumps go through rigorous tests—including life testing, vibration and thermal testing, sender testing, and leak testing—to ensure accurate metering for reliable automotive fuel efficiency. All these Airtex products are backed by a warranty to protect customers in the unlikely event of premature pump failure.
