DANA part description

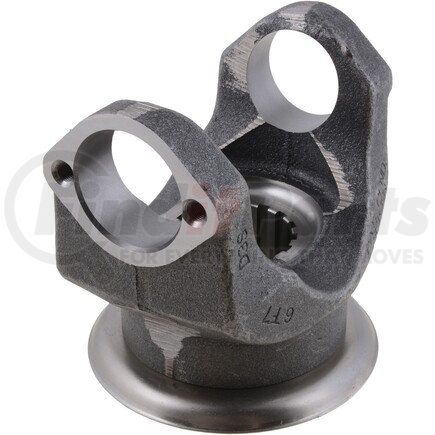

Spicer 6-4-5071X Jack Shaft Yoke 2.344"X16Spl
645071X
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

6-4-5071X
JOINT SERIES:1710
D DIMENSION:1.94
E DIMENSION:6.09
YOKE STYLE:Bearing Plate
Q LENGTH THRU HOLE:2.75
R HUB DIAMETER:3.312
S CENTERLINE TO END:4.938
SPLINE COUNT:16
SPLINE OD:2.35
NOTES:Coupling shaft yoke

Product Attributes

Series 1710
Material Steel
Spline Count 16
Type Splined Hole
Assembly Y
Hub Diameter R 3.312 IN
Includes Slinger/Plug Y
Involute Spline N
Length Thru Hole Q 2.750 IN
Outside Yoke Dimension (In) E 6.094 IN
Yoke Bearing Dimension (In) D 1.938 IN
Yoke Style BP
Major Diameter 2.350 IN
C/L To End Hub S 4.938 IN

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 8708990000
Harmonized Tariff Code (HTS) 8708990000
UPC 00023913214340
VMRS Code 022003072

Part Interchanges

DANA 6-4-5071X Cross Reference

We have 2 alternatives for the 6-4-5071X by DANA:
