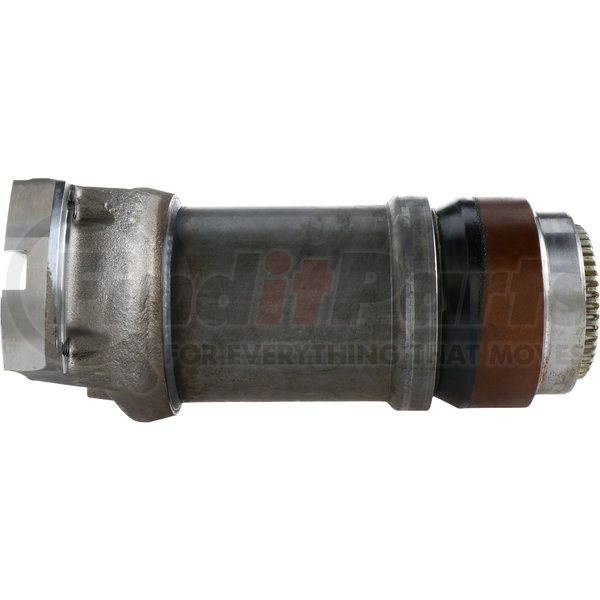

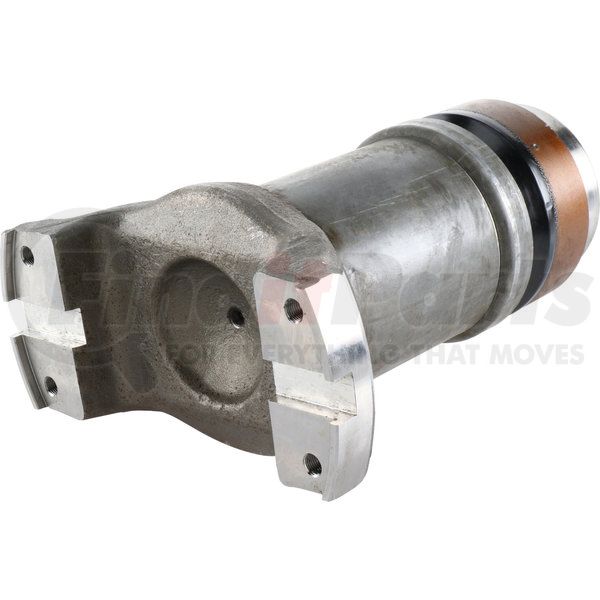

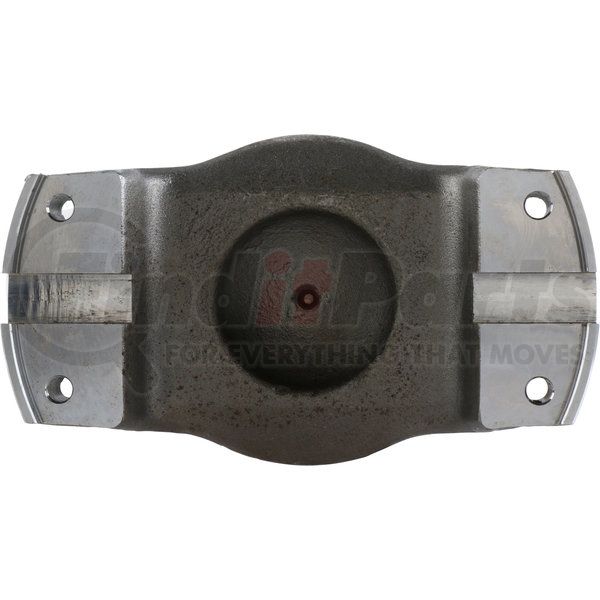

Dana 612825005 - WING BEARING DRIVE SHAFT SLIP YOKE
$3,91549
229 day lead time
limited availability at this price!
. Learn more
DANA part description
| Brand: | Spicer |
| Series: | 12C |
| Spline Count: | 46 |
| Slip (IN): | 5.315 |
| VMRS: | 24002078 |
| Type: | 1PLINE SIZE |
| Slip (MM): | 135 |
| Angle: | 25 |
| Thread: | M14 X 1.5 |
| Spline O.D. (IN): | 4.724 |
| Spline O.D. (MM): | 120 |
| Collapsed Length (IN): | 14.055 |
| Collapsed Length (MM): | 357 |
| Pilot Diameter (IN): | 11.374 |
| Pilot Diameter (MM): | 288.9 |
| Bolt Hole (IN): | 3.626 |
| Bolt Hole (MM): | 92.1 |
| Package Type: | Each |
| Package Quantity: | 1 |
| Weight: | 89.99 lbs. |
| Country of Origin: | Italy |
| UPC Code: | 023913295820 |
Features & Benefits
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana.
- Tested and validated to rigorous OE specifications.
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.
Product Attributes
| Thread | M14 X 1.5 |
| Series | 12C |
| Spline Count | 46 |
| Type | 1PLINE SIZE |
| Slip (In) | 5.315 IN |
| Slip (Mm) | 135 MM |
| Bolt Hole (In) | 3.626 IN |
| Spline O.D. (MM) | 120 MM |
| Angle | 25 |
| Bolt Hole (MM) | 92.1 MM |
| Collapsed Length (in) | 14.055 IN |
| Collapsed Length (mm) | 357 MM |
| Pilot Diameter (in) | 11.374 in |
| Pilot Diameter (MM) | 288.9 MM |
| Spline O.D. (IN) | 4.724 IN |
Additional Information
| Country of Origin (Primary) | IT |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913295820 |
| VMRS Code | 024002078 |
Part Interchanges
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
