DANA 170-4-921-1 OUTPUT SHAFT END YOKE

$386.99

Limited availability at this price!

33 Day Lead Time

Get it by Tuesday, Feb 3
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
This item will ship about 33 days after the date of purchase

DANA 170-4-921-1 Part Description

Manufacturer

DANA

End yoke - Series 2261

Special Note: Lead Time60 Days

DANA 170-4-921-1 Specifications

Product Attributes

Series SPL170
Material Steel
Spline Count 34
Type Splined Hole
Assembly N

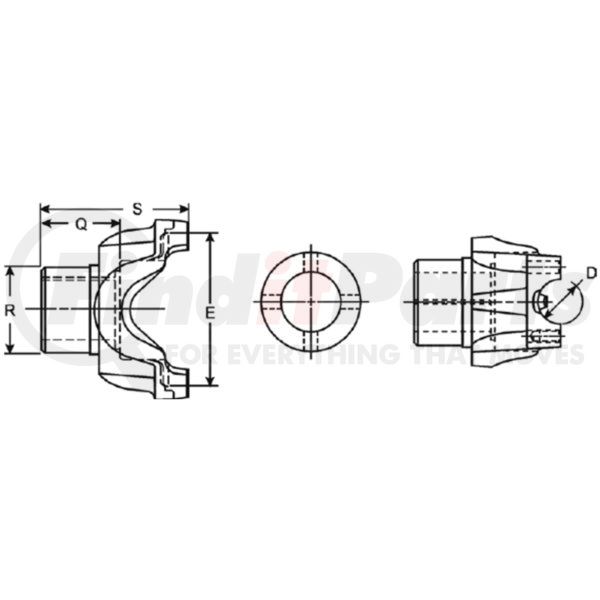

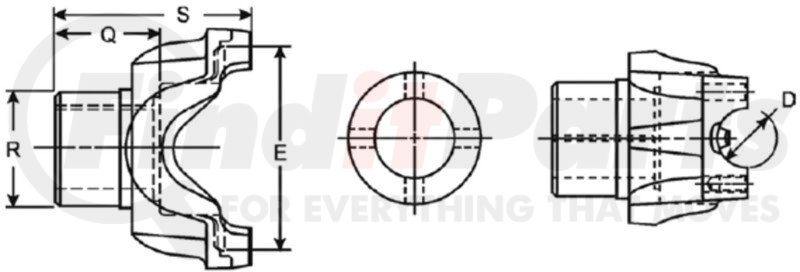

Hub Diameter R 2.500 IN
Includes Slinger/Plug N
Involute Spline I
Length Thru Hole Q 2.250 IN
Outside Yoke Dimension (In) E 6.456 IN
Yoke Bearing Dimension (In) D 2.166 IN
Yoke Style HR
Major Diameter 1.790 IN
C/L To End Hub S 5.030 IN
C-Bore Depth 0.090 IN
Joint Angle #1 25

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 8708990000
Harmonized Tariff Code (HTS) 8708990000
UPC 00023913247447
VMRS Code 022004082

DANA 170-4-921-1 Part Interchanges

Brand Part Number
Volvo SP 17049211
International Harvester (IHC) 17049211, 3517066C1, E17049211
McNeilus 1330083
Navistar 17049211, 3517066C1, DS17049211, E17049211
Peterbilt 1330083

DANA 170-4-921-1 Manufacturer Information

Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
