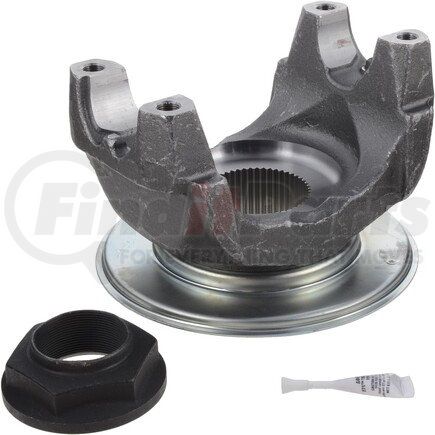

DANA 131440K Part Description
Manufacturer
Specifications
| Brand | Spicer |
| Series | 1760 |
| Spline Count | 49 |
| Yoke Style | BP |
| Hub Diameter R | 3.818 |
| C/L To End Hub S | 5.200 |
| Type | Splined Hole |
| Outside Yoke Dimension (In) E | 7.000 |
| Yoke Bearing Dimension (In) D | 1.938 |
| Major Diameter | 2.544 |
| Involute Spline | Y |
| Length Thru Hole Q | 2.125 |
| VMRS | 022003072 |
| C-Bore Depth | 0.120 |
| Includes Slinger/Plug | Y |
| Assembly | Y |
| Material | Steel |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 17.35 LB |
| Country of Origin | Mexico |
DANA 131440K Specifications
Product Attributes
| Series | 1760 |
| Material | Steel |
| Spline Count | 49 |
| Type | Splined Hole |
| Assembly | Y |
| Hub Diameter R | 3.818 IN |
| Includes Slinger/Plug | Y |
| Involute Spline | Y |
| Length Thru Hole Q | 2.125 IN |
| Outside Yoke Dimension (In) E | 7.000 IN |
| Yoke Bearing Dimension (In) D | 1.938 IN |
| Yoke Style | BP |
| Major Diameter | 2.544 IN |
| C/L To End Hub S | 5.200 IN |
| C-Bore Depth | 0.120 IN |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913221492 |
| VMRS Code | 022003072 |
DANA 131440K Part Interchanges
| Brand | Part Number |
|---|---|
| Daimler Truck North America | SP 131440K |
| Volvo | SP 131440K |
| International Harvester (IHC) | 131440K, E131440K |
| Navistar | 131440K, DS131440K, E131440K |
| Paccar Parts | 131440KETN |
| Mack | 2719-131440K |
DANA 131440K Cross References
We have 2 alternatives for the 131440K by DANA:
DANA 131440K Manufacturer Information
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
