Dana 100-4-1061-1X - SPL100 Series Differential End Yoke - Assembly, Steel, HR Yoke Style, 41 Spline
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
DANA part description
Specifications
| Brand | Spicer |
| Series | SPL100 |
| Spline Count | 41 |
| Yoke Style | HR |

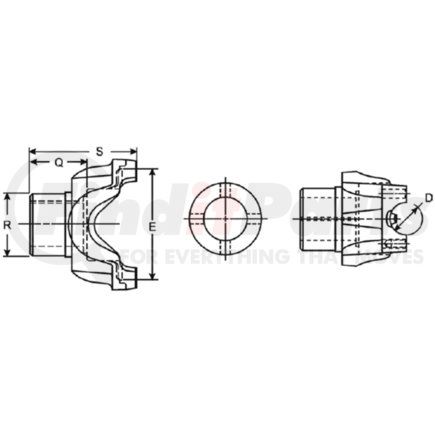

| Hub Diameter R | 2.938 |
| C/L To End Hub S | 4.562 |
| Type | Splined Hole |
| Outside Yoke Dimension (In) E | 4.958 |
| Yoke Bearing Dimension (In) D | 1.625 |
| Major Diameter | 2.143 |
| Involute Spline | Y |
| Length Thru Hole Q | 2.500 |
| VMRS | 022003072 |
| Includes Slinger/Plug | Y |
| Assembly | Y |
| Material | Steel |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 4.42 LB |
| Country of Origin | Mexico |
Product Attributes
| Series | SPL100 |
| Material | Steel |
| Spline Count | 41 |
| Type | Splined Hole |
| Assembly | Y |
| Hub Diameter R | 2.938 IN |
| Includes Slinger/Plug | Y |
| Involute Spline | Y |
| Length Thru Hole Q | 2.500 IN |
| Outside Yoke Dimension (In) E | 4.958 IN |
| Yoke Bearing Dimension (In) D | 1.625 IN |
| Yoke Style | HR |
| Major Diameter | 2.143 IN |
| C/L To End Hub S | 4.562 IN |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913265915 |
| VMRS Code | 022003072 |
Part Interchanges
- Allison Transmission 15035940
- Daimler Truck North America SP 100-4-1061-1X
- Dana Commercial Vehicle Service Parts 90-4-691-1X
- General Motors 15035940
- Volvo SP 100410611X
- International Harvester (IHC) 100410611X
- International Harvester (IHC) 2595318C91
- Navistar 100410611X
- Navistar 2595318C91
- Navistar 3549353C91
- Navistar DS100410611X
- Navistar E9046911X
DANA 100-4-1061-1X Cross Reference
We have 2 alternatives for the 100-4-1061-1X by DANA:
