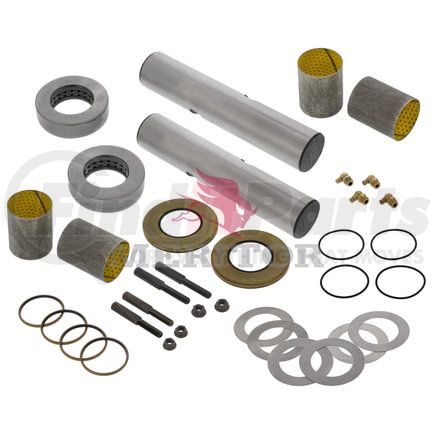

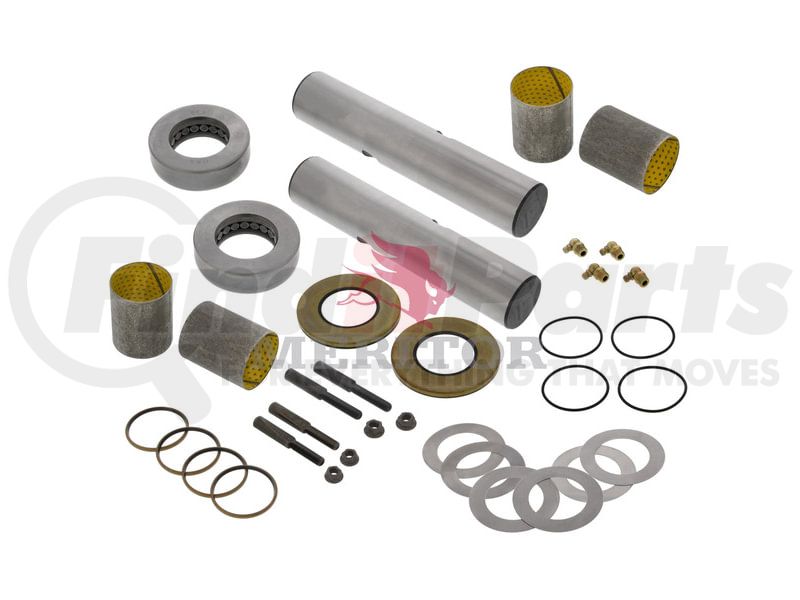

(888) 312-8812 Login SignupMERITOR R201486 Steering King Pin, 1.921 in. King Pin Diameter, 9.87 in. King Pin Length, Composite (Ream)
MSRP: $722.45
$38249
Save $339.96
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
MERITOR R201486 Part Description
Manufacturer
Product Description
King Pin Kit, Easysteer
Features & Benefits
- Case-hardened steel king pins engineered to resist constant friction wear
- High-density composite bushings designed for superior grease retention
- Restores exact mechanical tolerances within the steering knuckle setup
- Enhances directional tracking accuracy across uneven road beds
Meritor Steering King Pin Kit
Eliminate loose steering wheel play and front-end tire scrubbing with the Meritor Steering King Pin Kit. Front-end lane wander creates a distinct handling issue for linehaul drivers when steer axle pivots wear past their limits. Exact mechanical precision returns to the steering knuckle assembly upon introducing the Meritor R201486. Steer tires track perfectly straight on long-haul routes as a direct result of these premium replacement tolerances.
| Axle Make | Eaton/Dana |
| Axle Model | 02ADD, 02ADG, 02ADN, 02ADP |
| Bushing Type | Composite (Ream) |
| King Pin Diameter | 1.921 in. |
| King Pin Length | 9.87 in. |
| King Pin Type | Double Draw Key |
| VMRS Code | 011-001-010 |
Meritor King Pin Kit
Meritor king pin kit offers a cost-effective and reliable solution for king pin replacement. Each kit is designed to provide exceptional performance and durability for a wide variety of heavy duty vehicle applications.
Features & Benefits
- EZI Steer low-friction bushings improve steering response and last longer than standard bushings
- Double draw keys help secure the king pin more effectively, resulting in greater front end stability
- Heavy duty king pin seal keeps lubricant from leaking and protects against contaminants
- Multiple groove design allows for complete flushing during lubrication
- Enhances directional tracking accuracy across uneven road beds
MERITOR R201486 Specifications
Product Attributes
| Axle Make | Eaton/Dana |
| Axle Model | 02ADD, 02ADG, 02ADN, 02ADP |
| Brand | Meritor |
| Bushing Type | Composite (Ream) |
| King Pin Diameter | 1.921 in. |
| King Pin Length | 9.87 in. |
| King Pin Type | Double Draw Key |
| Pallet Quantity | 144 |
| Weight | 21.90 |
| Axle Type | 02ADD, 02ADG, 02ADN, 02ADP |
| King Pin Diameter | 1.921 in. |
| King Pin Length | 9.87 in. |
MERITOR R201486 Cross References
| Brand | Part Number |
|---|---|
| FAK5455, FLTKP5455, H120KK100, TDAR201486 | |
| ATRO | SKS12009, SKB12009 |
| AUTOMANN | 460260B, 460260C |
| DANA SPICER | 120KK100 |
| DAYTON PARTS | 308-276, 300-276, 300-271 |
| DAYTON PARTS BATCO | 300271, 300276 |
| Dana Commercial Vehicle Service Parts | 120KK100 |
| FLAGG | FKP118C |
| NAVISTAR | FLTKP5455 |
| STEMCO | 5012009 |
| TRAYER | TK635B |
| WORLD AMERICAN | WAK602 |
MERITOR R201486 Customer Reviews
No reviews yet
Be the first to review this product!
MERITOR R201486 Manufacturer Information
Meritor®, whose roots could be traced back to 1909, is backed by over 100 years of industry experience plus a massive portfolio of products for various industries. In 1998, it made several acquisitions, including Volvo Trucks' heavy vehicle manufacturing operation in Sweden, Euclid Industries, and Lucas Varity's Heavy Vehicle Braking Systems division. Such investments solidify Meritor's position as the leading global supplier of brakes, axles, drivelines, transmissions, suspensions, tire inflations systems, and a whole lot of parts, hardware, and accessories for the automotive, truck, trailer, rail cars, bus and coach, and many other applications. Its "Run with the Bull" global brand identity further strengthens its commitment to provide the industry with durable products, unparalleled service and support, and continuous innovation.
