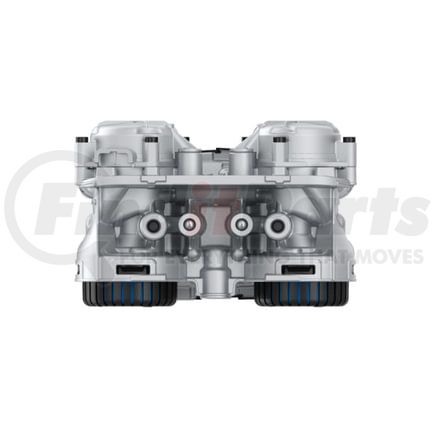

WABCO 480 106 005 0 - Electronic Brake Control Module - EBS Axle Modulator 2-Channel - Gen4
$55499
3 day lead time
Pay over 3-12 months with
. Learn more
. Learn more
WABCO part description
Electronic Brake Control Module - EBS Axle Modulator 2-Channel - Gen4
Product Attributes
| Voltage | 24 V |
| Mounting | 2x M12 x 1.5 |
| Temperature Range | -40°C to +80°C |
| Port thread 11 | M22 x 1.5 JED - 388-4 |
| Port thread 4 | M16 x 1.5 JED - 388-4 |
| Calculated Volume (dm³) | 5.6182 |
| Max. operating pressure | 188.5 psi |
| Distance Between Holes | 100 mm |
| Protection class | IP 6K6K / IP 6K9K |
| Port thread 3 | Integrated Silencer |
| Size | 227 x 165 x 150 |
| Rated current | 7 A |
| Port thread 21 | M22 x 1.5 JED - 388-4 |
| Weight | 7.0548 |
| Port thread 12 | M22 x 1.5 JED - 388-4 |
| Port thread 22 | M22 x 1.5 JED - 388-4 |
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
