(888) 312-8812 Login SignupGATES 85420 TH8NC Non-Conductive Hydraulic Thermoplastic Hose - SAE 100R8
$482.35
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES 85420 Part Description
Manufacturer
Product Description

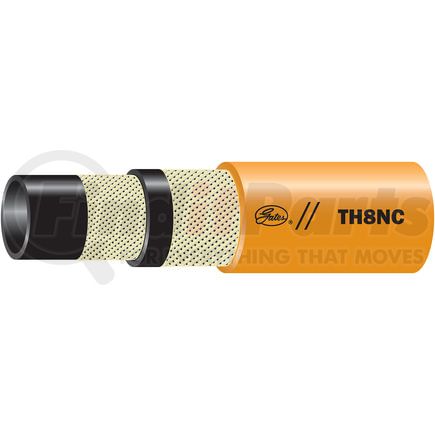

TH8NC Non-Conductive Hydraulic Thermoplastic Hose - SAE 100R8
Features & Benefits
- For use with MegaCrimp Couplings [G25 Series]
- Orange color TH8SNC meets SAE 100R8 non-conductivity requirements and meets or exceeds performance requirements of SAE 100R8 with a significantly tighter bend radius
- Meets SAE 100R8 Electrical Conductivity Test; maximum leakage should not exceed 50 microamperes when subjected to 75 kV/Ft. for five minutes
- Temperature Range: Petroleum and Synthetic Oils: -65 Deg. F to +200 Deg. F (-54 Deg. C to +93 Deg. C) constant; Water, Water/Oil Emulsions,Water Glycol: up to +158 Deg. F (+70 Deg. C)
GATES 85420 Specifications
Product Attributes
| Product Type | TH8NC Non-Conductive Hydraulic Hose - SAE 100R8 |
| Industrial Description | 6TH8NCX50FT |
| Type | Thermoplastic Hose |
| Hose Pressure Description | Very High Pressure |
| Maximum Working Pressure | 4000 PS |
| Burst Pressure | 16000 PS |
| Temperature Rating | -65 Deg. F to +200 Deg. F (Petroleum & Synthetic Oils), to +158 Deg. F (Water/Oil & Water Glycol) |
| Length | 40 FT |
| Dash Size | 6 |
| Inside Diameter | .375 IN |
| Outside Diameter | .75 IN |
| Bend Radius | 2.5 IN |
| Tube Description | Seamless Nylon (Type Z) |
| Hose Material | Seamless Nylon (Type Z) |
| Reinforcement Material | Polyester |
| Cover Material | Urethane - Non-Perforated for Applications Requiring Electrical Non-Conductivity |
| Cover Type | Resistant to Hydraulic Fluid, High Temperature, Aging & Weathering |
| Cover Color | Orange |
| Coupling Recommendation | MegaCrimp |
| SAE Standard | 100R8 |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 3917310000 |
| Stock Status | S |
| UPC | 00770075322290 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 85420 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | FC375-06 |
| N/A | 04030541 |
| NAPA | 85420 |
| Weatherhead | H33506 |
