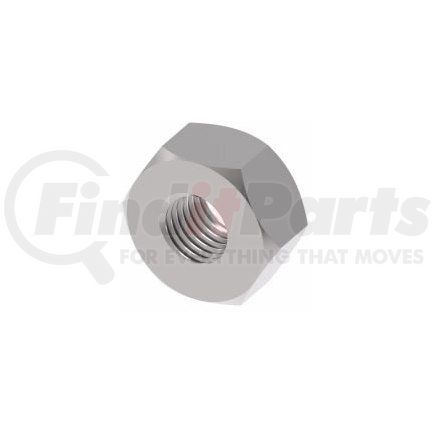

Weatherhead WAL039845 - Walterscheid Metric Tube Fitting - M18X1.5 L Nut Only 12MM Tube OD
- Part Number
- WAL039845
- Manufacturer
- WEATHERHEAD
- Description
-
Walterscheid Metric Tube Fitting - M18X1.5 L Nut Only 12MM Tube OD
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
WEATHERHEAD part description
| End Type | SAE 45 Degree |
| Material | Carbon Steel |
| Pressure (PSI) | 5801 |
| Primary System | WALPRO |
| Series | L - Light Series |
| Shape | 45 Degree |
| Tube OD | 12 |
| Captive seal | WAL610874 |
| Description | Nut |
| Family | Metric Tube Fittings |
| M | M18x1.5 |
| Profile ring | WAL372407 |
| S2 | 22 |
| Section in Catalog | D |
| Tube Outside Diameter | 12 |
| Type | M 12L |
| Weight Kg/100 pcs. | 2.5 |
| l1 | 16.5 |
The WALPro® metric tube fitting exhibits a two-edge cutting ring that provides best-in-class performance as well as ease of installation. All parts are built to DIN EN ISO 8434-1 specifications for 24o tube fittings. This system, along with WALRing and WALForm ® , can meet the requirements of demanding platforms and applications in a variety of different markets.
Features & Benefits
- Two edge cutting ring
- Controlled final assembly
- Metal on metal sealing
- Prefabrication by hand or with a machine
- ~ 25% reduction in torque if machine assembled
- Offered in both carbon steel and stainless steel (featuring DIN 1.4571 material)
Officially acquired by Eaton in 2002, Weatherhead® is one of the industry’s biggest suppliers of hydraulic hose, hose ends, tube fittings, couplings, assembly equipment, and support accessories. Weatherhead crafts top-products that are widely used in mining, agriculture, construction, truck, and bus applications. Eaton delivers Weatherhead thermoplastic tubing in different sizes—from 1/8 to 1 inch—designed for use in air tools, robotics, beverage dispensing as well as air and water supply. Driven by the company’s goal to offer unique solutions to a wide range of markets that enable businesses to be at the forefront of change, Weatherhead remains the truck industry’s leading source of premium-quality hoses, fittings, and adapters for your fleet’s hose and fittings needs
