(888) 312-8812 Login SignupRAYBESTOS 96752 Raybestos Specialty - Street Performance Brake Rotor
$75.63
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 96752 Part Description
Manufacturer
Product Description

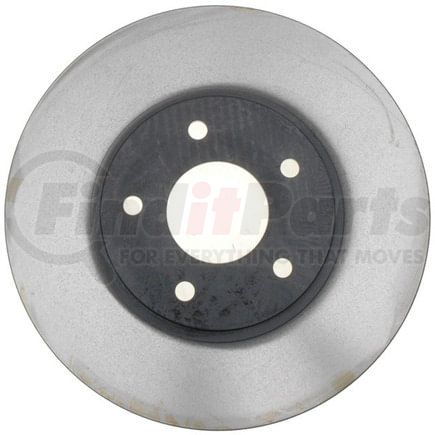

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2001-1997 INFINITI Q45 Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 96752 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.678 IN |
| Center Hole Diameter | 68 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.021 IN |
| Discard Thickness | 25.95 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.495 IN |
| Mounting Bolt Hole Diameter | 12.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.1 IN |
| Nominal Thickness | 27.95 MM |
| Outside Diameter | 11.65 IN |
| Outside Diameter | 295.9 MM |
| Overall Height | 2.11 IN |
| Overall Height | 53.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730728261 |
RAYBESTOS 96752 Cross References
| Brand | Part Number |
|---|---|
| 74826519, 747730728261 | |
| ADVANCE AUTO PARTS | 145194, YH145194, YH145194C |
| AMERICAN REMANUFACTURED | 89-04065 |
| AUTOSPECIALTY | JBR758, JBR758E |
| AUTOXTRA | 125598, AX31236 |
| AUTOZONE | 31236, 31236DG |
| BECK/ARNLEY | 083-2738 |
| BENDIX | 145194 |
| BRAKEBEST | 40011065, 96752, 96752R, 96752RGS, BD125598 |
| BREMBO | 09.9057.85, 25638 |
| Brembo | 09.9057.10 |
| CENTRIC | 120.42065, 121.42065, 126.42065SL, 126.42065SR, 127.42065L, 127.42065R |
| Casting Numbers | 211191-C, 325475 |
| Centric Parts | 120.42065, 121.42065, 126.42065SL, 126.42065SR, 127.42065L, 127.42065R |
| DATSUN/NISSAN | 402066P000 |
| DURA CORP | BR31236 |
| DuraGo | BR31236 |
| EUROROTOR | NI475 |
| GREN | 39202 |
| MIGHTY DISTRIBUTING SYSTEM | 31236 |
| NEWTEK AUTOMOTIVE | 31236 |
| Newtek Automotive USA | 31236 |
| Nissan | 402066P000 |
| Omnicraft | QBRR533 |
| PROMAX | 14-31236 |
| PRONTO | BR31236 |
| QUALIS | 31236 |
| QUALITEE INTERNATIONAL | 64-76-810 |
| QUALITY BRAND | 31236 |
| THE UNIVERSAL GROUP | 125025 |
| TRUSTAR | 476810, R76810 |
| UAP | 31236 |
| Universal | 125025 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51385 |
| WAGNER | BD125598 |
| WAGNER BRAKE | BD125598 |
| WINHERE | 4420068 |
RAYBESTOS 96752 Fits Vehicles
- INFINITI Q45 (1997-2001)
