(888) 312-8812 Login SignupRAYBESTOS 580299 Raybestos Specialty - Truck Brake Rotor
$68.87
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 580299 Part Description
Manufacturer
Product Description

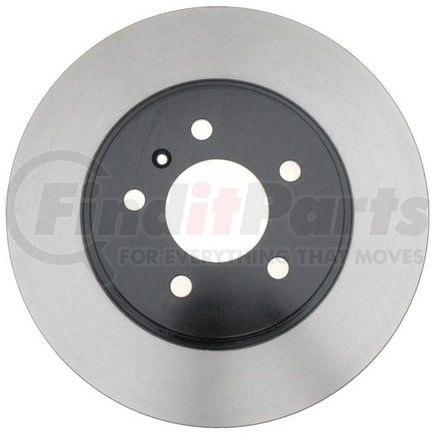

Raybestos Specialty - Truck Brake Rotor
Application Summary
2005 Chevrolet Uplander Rear, 2005 Pontiac Montana Rear, 2005 Buick Terraza Rear, 2005 Saturn Relay Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 580299 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.78 IN |
| Center Hole Diameter | 70.6 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.413 IN |
| Discard Thickness | 10.5 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.528 IN |
| Mounting Bolt Hole Circle Diameter | 115 MM |
| Mounting Bolt Hole Diameter | 0.557 IN |
| Mounting Bolt Hole Diameter | 14.15 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.472 IN |
| Nominal Thickness | 12 MM |
| Outside Diameter | 11.815 IN |
| Outside Diameter | 300.1 MM |
| Overall Height | 1.37 IN |
| Overall Height | 34.8 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352331606 |
RAYBESTOS 580299 Cross References
| Brand | Part Number |
|---|---|
| ACDELCO | 177-0920 |
| ADVANCE AUTO PARTS | YH145614P, YH200398 |
| AUTOXTRA | AX900316 |
| AUTOZONE | 55108, 55108DG |
| BENDIX | 145614 |
| BOSCH | 25010657 |
| BRAKEBEST | 25010657, 580299, 580299FZN, 580299R, 580299RGS |
| BREMBO | 27400 |
| CENTRIC | 120.66060, 121.66060, 126.66060SL, 126.66060SR, 127.66060L, 127.66060R, 320.66060 |
| Casting Numbers | 18048469, 211684-C, 326243 |
| Centric Parts | 120.66060, 121.66060, 126.66060SL, 126.66060SR, 127.66060L, 127.66060R, 320.66060 |
| DURA CORP | BR55108, BR900316, BR90031602 |
| DuraGo | 900316, BR900316 |
| MIGHTY DISTRIBUTING SYSTEM | 55108 |
| MONROE BRAKES | BD126300 |
| NEWTEK AUTOMOTIVE | 55108 |
| Newtek Automotive USA | 55108 |
| PROMAX | 14-55108 |
| PRONTO | BR900316 |
| Qualis | 55108 |
| SATURN | 88964176 |
| TRUSTAR | 493615 |
| UAP | 55108 |
| Ultra Brake | 55904 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51724 |
| WABCO | PS126300 |
| WABCO - Archived | PS126300 |
| WAGNER | BD126300, BD126300E |
| WAGNER BRAKE | BD126300 |
| WINHERE | 661710 |
| Wagner Brake | BD126300E |
RAYBESTOS 580299 Fits Vehicles
- Saturn Relay (2005)
- Pontiac Montana (2005)
- Chevrolet Uplander (2005)
- Buick Terraza (2005)
