(888) 312-8812 Login SignupRAYBESTOS 66406 Raybestos Specialty - Street Performance Brake Rotor
$6849
Limited availability at this price!
In Stock
Get as soon as Wednesday, Oct 21
RAYBESTOS 66406 Part Description
Manufacturer
Product Description

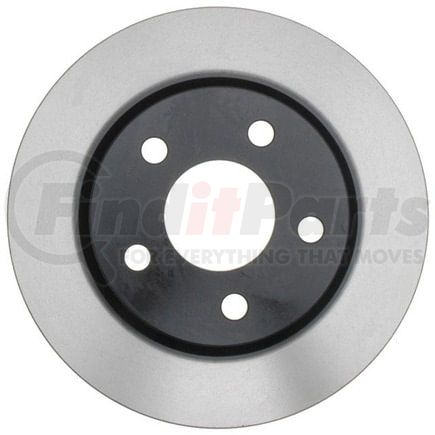

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2007-1993 Ford Taurus Rear, 2005-1993 Mercury Sable Rear, 2002-1993 Lincoln Continental Rear, 2000-1995 Ford Mystique Rear, 2001-1994 Ford Sable Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes:Black fusion coating on the rotor hatGrey Fusion 4.0® coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 66406 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.54 IN |
| Center Hole Diameter | 64.5 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.502 IN |
| Discard Thickness | 12.75 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.25 IN |
| Mounting Bolt Hole Circle Diameter | 107.95 MM |
| Mounting Bolt Hole Diameter | 0.575 IN |
| Mounting Bolt Hole Diameter | 14.6 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.55 IN |
| Nominal Thickness | 13.95 MM |
| Outside Diameter | 10.1 IN |
| Outside Diameter | 256.55 MM |
| Overall Height | 1.54 IN |
| Overall Height | 39.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999734044 |
RAYBESTOS 66406 Cross References
| Brand | Part Number |
|---|---|
| 25096763, 30999734044 | |
| ADVANCE AUTO PARTS | 141893, YH141893, YH141893C, YH141893P |
| AMERICAN REMANUFACTURED | 789-34039, 89-34039 |
| AUTOSPECIALTY | AR8139, AR8139E |
| AUTOXTRA | AX54025 |
| AUTOZONE | 54025, 54025B, 54025DG, DL54025 |
| BENDIX | 141893 |
| BOSCH | 20010315, RBR54025 |
| BRAKE HEADQUARTERS | BR54548 |
| BRAKEBEST | 20010315, 66406, 66406FZN, 66406R, 66406RGS, 81-125328, BD125328 |
| BREMBO | 08.7984.10, 08.7984.85, 27109 |
| Brembo | 08.7984.11 |
| Bridgestone | 7002435 |
| CALIFORNIA DRUM & ROTOR | 125328 |
| CENTRIC | 120.61039, 120.61039CRY, 121.61039, 125.61039, 126.61039CSL, 126.61039CSR, 126.61039SL, 126.61039SR, 127.61039L, 127.61039R, 128.61039L, 128.61039R, 320.61039F, 320.61039, 321.61039 |
| CENTURY | 6071 |
| CONTINENTAL-CONTITECH | CW14700 |
| Casting Numbers | 210606-C, 211497-DP, 325204 |
| Centric Parts | 120.61039, 120.61039CRY, 121.61039, 125.61039, 126.61039CSL, 126.61039CSR, 126.61039SL, 126.61039SR, 127.61039L, 127.61039R, 128.61039L, 128.61039R, 320.61039, 320.61039F, 321.61039 |
| DELPHI | RB269 |
| DURA CORP | BR54025 |
| DuraGo | BR54025 |
| EIS BRAKES | D17696 |
| EUCLID | E-12322 |
| EUROROTOR | 54100 |
| FORD | F3DZ2C026A, YF1Z2C026AA, YF1Z2C026BA |
| GREN | 647301 |
| GUARDIAN | 52-125328 |
| MAGMA PRODUCTS | PSR203047 |
| MIDAS | BR1930 |
| MIGHTY DISTRIBUTING SYSTEM | 54025 |
| MONROE BRAKES | BD125328 |
| MOTORCRAFT | BRR51 |
| Motorcraft | NBRR96 |
| NEOTEK | 107139GF |
| NEWTEK AUTOMOTIVE | 54025 |
| Newtek Automotive USA | 54025 |
| PARTS MASTER | P125328 |
| POWERSTOP | AR8139EVC |
| PROMAX | 14-54025 |
| PRONTO | BR54025 |
| QUALIS | 54025 |
| QUALITEE INTERNATIONAL | 64-92-790 |
| QUALITY BRAND | 54025, Q4012 |
| STANDARD ROTORS AND DRUMS | 54025 |
| THE UNIVERSAL GROUP | 102220 |
| TRUSTAR | 492790, R92790 |
| TopNotch | TN66406GEO |
| UAP | 54025 |
| Ultra Brake | 54100 |
| Universal | 102220 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51003 |
| WABCO | PS125328 |
| WABCO - Archived | PS125328 |
| WAGNER | BD125328, BD125328E |
| WAGNER BRAKE | BD125328 |
| WINHERE | 661167, YH1167 |
| Wagner Brake | BD125328E |
RAYBESTOS 66406 Fits Vehicles
- Ford Contour (1995)
- Ford Mystique (1995-2000)
- Ford Sable (1994-2001)
- Ford Taurus (1993-2007)
- Lincoln Continental (1993-2002)
- Mercury Sable (1993-2005)
