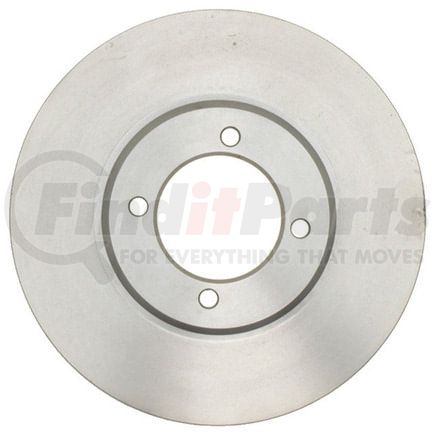

9248R by RAYBESTOS - Brake Parts Inc Raybestos R-Line Disc Brake Rotor
9248R by RAYBESTOS - Brake Parts Inc Raybestos R-Line Disc Brake Rotor
9248R by RAYBESTOS - Brake Parts Inc Raybestos R-Line Disc Brake Rotor

RAYBESTOS 9248R - Brake Parts Inc Raybestos R-Line Disc Brake Rotor

Part Number
9248R
Manufacturer
RAYBESTOS
Description

Brake Parts Inc Raybestos R-Line Disc Brake Rotor

details

NO STOCK AVAILABLE

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

Sometimes we may have similar parts for sale, click the button below to see if anything matches.

Search Alternatives

RAYBESTOS part description

California Proposition 65 Warning California Proposition 65 Warning

WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)

Product Description

Raybestos R-Line Brake Rotor

Application Summary

1982-1974,1972 Toyota Corona Front, 1980-1978 Toyota Cressida Front, 1976-1972 Toyota Mark II Front, 1971 Toyota Crown Front

Product Attributes

Center Hole Diameter 2.992 IN
Center Hole Diameter 76 MM
9565 Conventional
Discard Thickness 0.453 IN
Discard Thickness 11.5 MM
Harmonize Code 8708.30.5030
Mounting Bolt Hole Circle Diameter 3.937 IN
Mounting Bolt Hole Circle Diameter 100 MM
Mounting Bolt Hole Diameter 0.411 IN
Mounting Bolt Hole Diameter 10.45 MM
Mounting Bolt Hole Quantity 4
Nominal Thickness 0.492 IN
Nominal Thickness 12.5 MM
Outside Diameter 10.475 IN
Outside Diameter 266.05 MM
Overall Height 1.65 IN
Overall Height 41.9 MM
Salability Restrictions No
Solid Or Vented Type Rotor Solid
Stud/Lug Hole Quantity 4
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
UPC 00829352368060

Part Interchanges

RAYBESTOS 9248R Cross Reference

We have 85 alternatives for the 9248R by RAYBESTOS:

Fits Vehicles

  • Toyota Crown (1971)
  • Toyota Mark II (1972-1976)
  • Toyota Cressida (1978-1980)
  • Toyota Corona (1972, 1974-1982)
