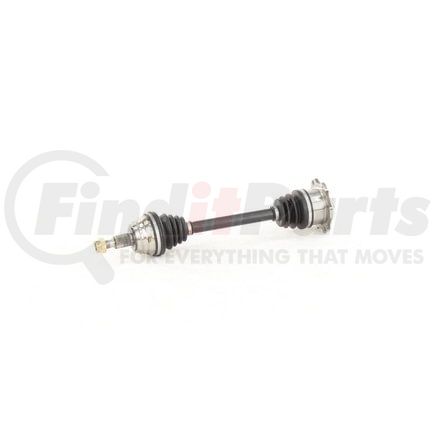

TrakMotive VW-8057 - CV Axle Shaft
- Part Number
- VW-8057
- Manufacturer
- TRAKMOTIVE
- Description
-
CV Axle Shaft
details
$7099
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
TRAKMOTIVE part description
Product Description
CV Axle Shaft
Product Attributes
| ABS Ring Tooth Count | 0 |
| ABS Ring Type | N/A |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | N/A |
| Axle Bolt Length (mm) | N/A |
| Axle Bolt Thread Size | N/A |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .67 |
| Axle Nut Height (mm) | 17 |
| Axle Nut Hex Size (in) | 1.33 |
| Axle Nut Hex Size (mm) | 34 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.56 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Nylon Lock |
| Axle Nut Thread Size | M20x1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | N/A |
| Inboard Bolt Head Size (mm) | N/A |
| Inboard Bolt Head Type | N/A |
| Inboard Bolt Length (in) | N/A |
| Inboard Bolt Length (mm) | N/A |
| Inboard Bolt Thread Size | N/A |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 36 |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Outboard Bolt Head Type | N/A |
| Outboard Bolt Length (in) | N/A |
| Outboard Bolt Length (mm) | N/A |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 21.26 |
| Overall Compressed Length (mm) | 540 |
| Axle Nut Socket Size | 34 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Outboard Joint Boot Material | Neoprene |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00844084097576 |
Part Interchanges
- ARC 80-3194
- EMPI 80-6861
- Mevotech CV7073
- USA Industries AX-9176
- Diversified Shafts Solutions 2308N
- Fenwick CV3855
- CARDONE Reman 60-7289
- CARDONE Reman 66-7289
- IMC 40754063
- Carquest Premium AC NCV72000
- OEM Part Number 1J0407271AG
- OEM Part Number 1J0407271DJ
- Altrom Group 652793
- TrakMotive VW-8057
- ProTech VW10508
- NCV72000
- 80-3194
- 667289
- 75877
- 40754063
- MX-18879
- 349057
Fits Vehicles
- Volkswagen Beetle (1998)
